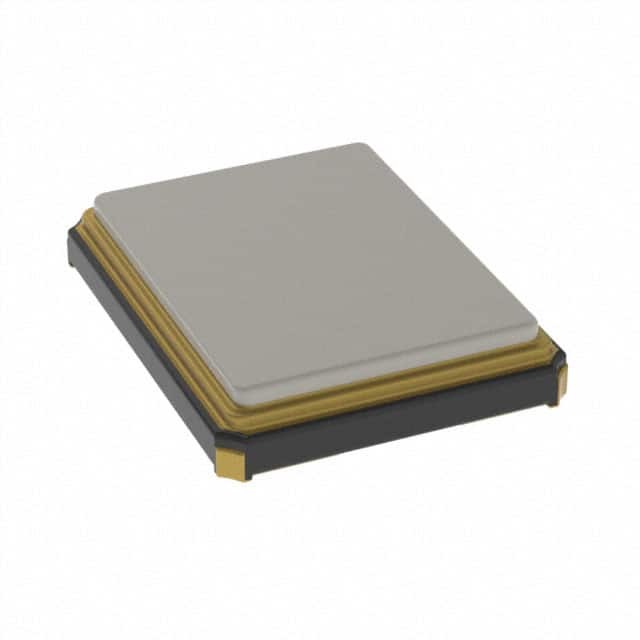

Part No NX3225SA-114.285MHZ-EXS00A-CS06528
Manufacturer NDK
Catalog Crystals
Description CRYSTAL 114.2850MHZ 18PF SMD / 114.285 MHz ±20ppm Crystal 18pF 80 Ohms 4-SMD, No Lead
Datasheet
NX3225SA-114.285MHZ-EXS00A-CS06528 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr NDK America, Inc.
Series NX3225SA
Package Tape & Reel
Type MHz Crystal
Frequency 114.285 MHz
Frequency Stability ±20ppm
Frequency Tolerance ±20ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 80 Ohms
Operating Mode 3rd Overtone
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.024" (0.60mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0060
Other Names 644-1201-2,644-1201-1,NX3225SA114285MHZEXS00ACS06528,644-1201-6,NX3225SA-114.258MHZ-EXS00A-CS06528
Standard Package 3,000
Win Source Part Number 1058120-NX3225SA-114.285MHZ-EXS00A-CS06528
Ultra Librarian 3D Model Ultra Librarian NX3225SA-114.285MHZ-EXS00A-CS06528 CAD Model

Description

The NX3225SA-114.285MHZ-EXS00A-CS06528 is a MHz crystal manufactured by NDK America, Inc.

  • Package: Tape and Reel
  • Height (Seated): 0.024 inches or 0.60mm
  • Frequency: 114.285 MHz
  • Frequency Tolerance: ±20ppm
  • Load Capacitance: 18pF
  • Overtone: 3rd
  • Temperature Range: -40°C to 85°C
