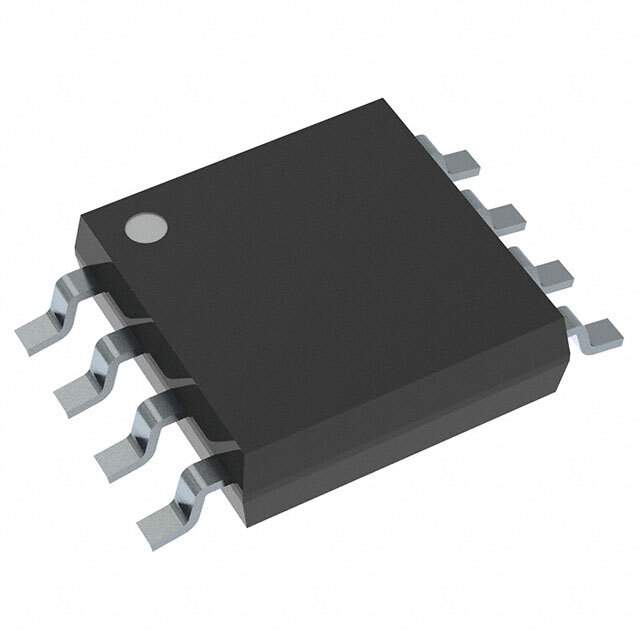

The NJM2403M(TE3) is a dual operational amplifier (op-amp) manufactured by New Japan Radio (NJR). This op-amp is designed for a wide range of analog signal processing applications, offering good performance characteristics and reliability. The dual configuration allows for two independent op-amps within a single package, saving space and reducing component count.

Applications:

• Audio Amplification: Preamplifiers, headphone amplifiers, and other audio signal processing circuits.
• Active Filters: Low-pass, high-pass, band-pass, and band-stop filters.
• Instrumentation Amplifiers: Used as building blocks for precision measurement circuits.
• Voltage Followers: Buffering signals to prevent loading effects.
• Signal Conditioning: Amplifying, filtering, and buffering signals for data acquisition systems.

Features:

• Dual Operational Amplifier: Two independent op-amps in a single package.
• Low Input Bias Current: Minimizes DC errors in amplifier circuits.
• Low Input Offset Voltage: Reduces output errors due to input voltage imbalances.
• Wide Supply Voltage Range: Operates over a broad range of supply voltages.
• High Open-Loop Gain: Provides high amplification for analog signals.
• Short Circuit Protection: Protects the op-amp from damage due to output short circuits.
• Small Package: Allows for easy integration into space-constrained applications.

Benefits:

• Reduced Component Count: Dual configuration reduces the number of ICs required.
• Improved System Performance: Low input bias current and offset voltage contribute to higher accuracy.
• Versatile Application: Suitable for a wide range of analog signal processing tasks.
• Simplified Design: Standard op-amp configuration simplifies circuit design.
• Compact Solution: Small package size enables use in space-constrained applications.

Additional Details:

The NJM2403M(TE3) typically operates with a supply voltage range of ±2V to ±18V. The device datasheet provides detailed information regarding electrical characteristics, such as input impedance, output voltage swing, and slew rate. Application circuits typically include external resistors and capacitors to set the gain, frequency response, and other performance parameters. The TE3 suffix likely refers to the packaging type (e.g., surface mount).
