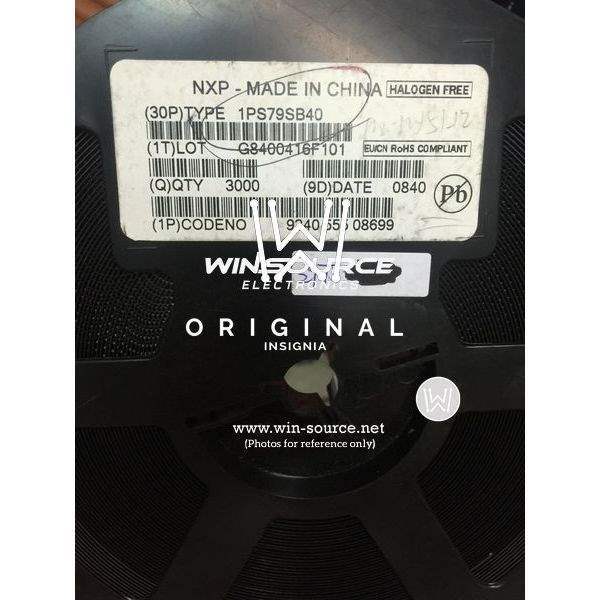

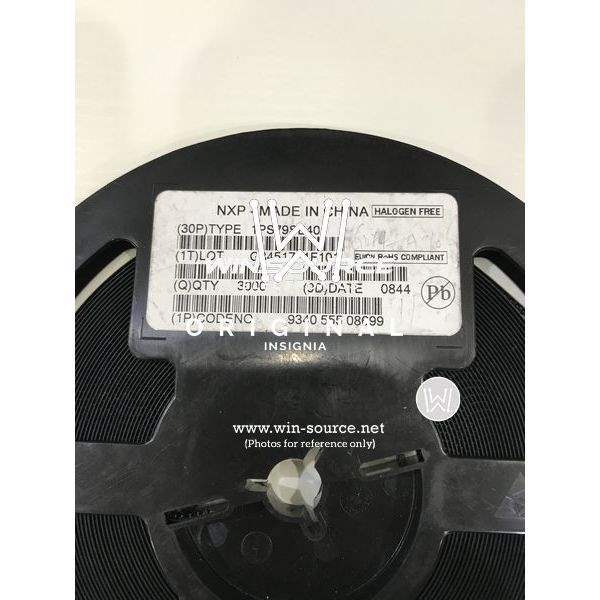

1PS79SB40,115 Nexperia USA Inc. 1PS79SB40,115 label picture 1 1PS79SB40,115 label picture 2 1PS79SB40,115 real image
Same model may have multiple batches, images only for reference.
1PS79SB40,115 Nexperia USA Inc. 1PS79SB40,115 label picture 1 1PS79SB40,115 label picture 2 1PS79SB40,115 real image
1PS79SB40,115 Nexperia USA Inc. 1PS79SB40,115 label picture 1 1PS79SB40,115 label picture 2 1PS79SB40,115 real image
Same model may have multiple batches, images only for reference.

1PS79SB40,115

Part No 1PS79SB40,115
Manufacturer Nexperia USA Inc.
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 40V 120MA SOD523
Datasheet
1PS79SB40,115 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 40V
Current - Average Rectified (Io) 120mA (DC)
Voltage - Forward (Vf) (Max) @ If 1V @ 40mA
Current - Reverse Leakage @ Vr 10μA @ 40V
Capacitance @ Vr, F 5pF @ 0V, 1MHz
Mounting SMD (SMT)
Case / Package SOD-523
Operating Temperature - Junction 150°C (Max)
Win Source Part Number 1002488-1PS79SB40,115
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian 1PS79SB40,115 CAD Model

Description

The Nexperia USA Inc. Schottky diode is a high-performance rectifier diode designed for use in electronic circuits.

  • Manufacturer: Nexperia USA Inc.
  • Maximum Reverse Voltage: 40V
  • Average Rectified Current: 120mA (DC)
  • Package: SOD-523
  • Forward Voltage: 1V @ 40mA
  • Reverse Leakage Current: 10μA @ 40V
  • Capacitance: 5pF @ 0V and 1MHz
  • Operating Temperature: Up to 150°C
  • Status: Active
  • Popularity: Medium
  • Supply and Demand Status: Sufficient
