Same model may have multiple batches, images only for reference.

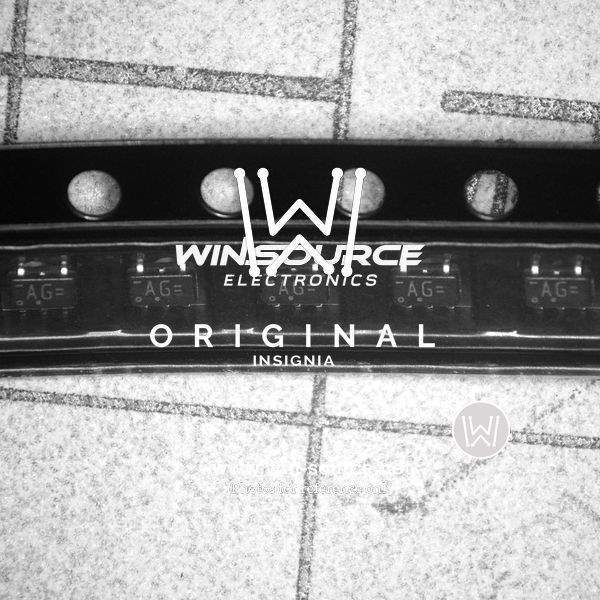

74AHC1G32GW-Q100,1 real image25219
Same model may have multiple batches, images only for reference.

74AHC1G32GW-Q100,1

Part No 74AHC1G32GW-Q100,1
Manufacturer Nexperia USA Inc.
Catalog Logic - Gates and Inverters
Description IC GATE OR 1CH 2-INP 5TSSOP  /  OR Gate IC 1 Channel 5-TSSOP
Datasheet
74AHC1G32GW-Q100,1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Logic - Gates and Inverters
Mfr Nexperia USA Inc.
Series 74AHC
Package Tape & Reel
Logic Type OR Gate
Number of Circuits 1
Number of Inputs 2
Voltage - Supply 2V ~ 5.5V
Current - Quiescent (Max) 1 µA
Current - Output High, Low 8mA, 8mA
Logic Level - Low 0.5V ~ 1.65V
Logic Level - High 1.5V ~ 3.85V
Max Propagation Delay @ V, Max CL 7.5ns @ 5V, 50pF
Temperature Range - Operating -40°C ~ 125°C
Mounting SMD (SMT)
Supplier Device Package 5-TSSOP
Package / Case 5-TSSOP, SC-70-5, SOT-353
Base Product Number 74AHC1G32
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names 74AHC1G32GW-Q100,1-ND,1727-8367-2,1727-8367-1,935298648125,1727-8367-6
Standard Package 3,000
Win Source Part Number 982300-74AHC1G32GW-Q100,1
Ultra Librarian 3D Model Ultra Librarian 74AHC1G32GW-Q100,1 CAD Model

Description

The Nexperia USA Inc. 982300-74AHC1G32GW-Q100,1 is a logic gate and inverter integrated circuit.

  • Mounting Type: Surface Mount
  • Packaging: Tape and Reel
  • Standard Package: 3,000
  • Voltage Supply: 2V to 5.5V
  • Maximum Propagation Delay: 7.5ns
  • REACH Status: REACH certified
  • ECCN: EAR99
