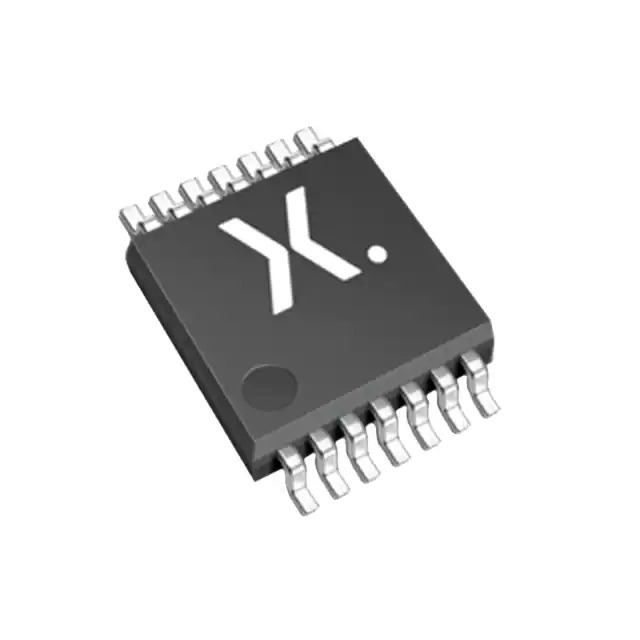

74LV132PW-Q100J Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

74LV132PW-Q100J

Part No 74LV132PW-Q100J
Manufacturer Nexperia USA Inc.
Catalog Logic - Gates and Inverters
Description IC GATE NAND 4CH 2-INP 14TSSOP
Datasheet
74LV132PW-Q100J Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Logic - Gates and Inverters
Mfr Nexperia USA Inc.
Series Automotive, AEC-Q100, 74LV
Package Tape & Reel
Product Status Active
Logic Type NAND Gate
Number of Circuits 4
Number of Inputs 2
Features Schmitt Trigger
Voltage - Supply 1V ~ 5.5V
Current - Quiescent (Max) 20 µA
Current - Output High, Low 12mA, 12mA
Input Logic Level - Low 0.3V ~ 1.2V
Input Logic Level - High 1.4V ~ 3.9V
Max Propagation Delay @ V, Max CL 9ns @ 5V, 50pF
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Surface Mount
Supplier Device Package 14-TSSOP
Package / Case 14-TSSOP (0.173", 4.40mm Width)
Base Product Number 74LV132
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1371186-74LV132PW-Q100J
Ultra Librarian 3D Model Ultra Librarian 74LV132PW-Q100J CAD Model

Description

The 74LV132PW-Q100J is a quad 2-input NAND gate with Schmitt trigger inputs. It operates at a voltage range of 1V to 5.5V and can withstand a temperature range of -40°C to 125°C. The gate is part of the 74LV series, which is automotive-grade and AEC-Q100 qualified.

  • Voltage Range: 1V to 5.5V
  • Temperature Range: -40°C to 125°C
  • Series: 74LV
  • Qualification: Automotive-grade, AEC-Q100 qualified
  • Package: 14-TSSOP
  • Mounting Type: Surface Mount
  • Quiescent Current: 20μA
  • Output Current: 12mA (High and Low)
  • Maximum Propagation Delay: 9ns @ 5V and 50pF
  • Inputs: 2
  • Circuits: 4
