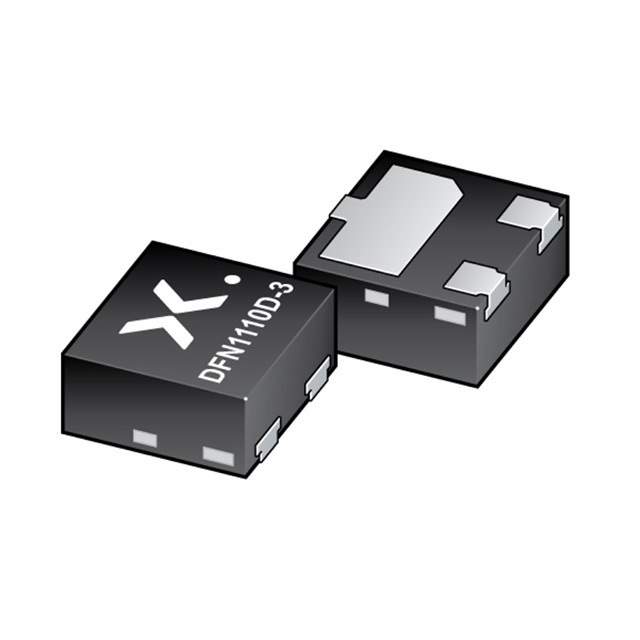

BAS21QBZ Real Image
Same model may have multiple batches, images only for reference.

BAS21QBZ

Part No BAS21QBZ
Manufacturer Nexperia USA Inc.
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 200V 250MA 3DFN / Diode Standard 200 V 250mA (DC) Surface Mount, Wettable Flank DFN1110D-3
Datasheet
BAS21QBZ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Nexperia USA Inc.
Series Automotive, AEC-Q101
Package Tape & Reel
Product Status Obsolete
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 200 V
Current - Average Rectified (Io) 250mA (DC)
Voltage - Forward (Vf) (Max) @ If 1.25 V @ 200 mA
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 50 ns
Current - Reverse Leakage @ Vr 100 nA @ 200 V
Capacitance @ Vr, F 5pF @ 0V, 1MHz
Mounting Type Surface Mount, Wettable Flank
Package / Case 3-XDFN Exposed Pad
Supplier Device Package DFN1110D-3
Operating Temperature - Junction 150°C
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0070
Other Names 1727-BAS21QBZTR,934660943147,1727-BAS21QBZCT,1727-BAS21QBZDKR
Standard Package 5,000
Win Source Part Number 1150456-BAS21QBZ
Ultra Librarian 3D Model Ultra Librarian BAS21QBZ CAD Model

Description

The BAS21QBZ is a standard diode that belongs to the Discrete Semiconductor Products category.

  • Application: Rectifiers
  • Series: Automotive, AEC-Q101
  • Manufacturer: Nexperia USA Inc.
  • Package: Tape and reel (5000)
  • Voltage - DC Reverse (Vr) (Max): 200 V
  • Current - Average Rectified (Io): 250mA (DC)
  • Voltage - Forward (Vf) (Max) @ If: 1.25 V @ 200 mA
  • Reverse Recovery Time (trr): 50 ns
  • Current - Reverse Leakage @ Vr: 100 nA @ 200 V
  • Capacitance @ Vr, F: 5pF @ 0V, 1MHz
  • Operating Temperature - Junction: 150°C
  • Mounting Type: Surface mount, wettable flank
  • Package/Case: 3-XDFN Exposed Pad
  • Supplier Device Package: DFN1110D-3
