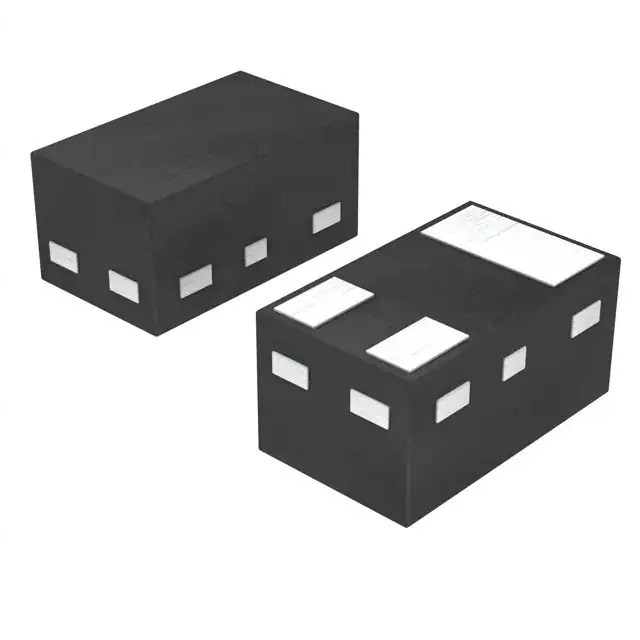

Same model may have multiple batches, images only for reference.

BC847CMB,315

Name: BC847CMB,315
Brand: Nexperia USA Inc.
SKU: 1377035
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	BC847CMB,315
Manufacturer	Nexperia USA Inc.
Catalog	Transistors (BJT) - Single
Description	TRANS NPN 45V 0.1A DFN1006B-3
Datasheet	BC847CMB,315 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products - Transistors - Bipolar (BJT) - Single Bipolar Transistors
Mfr	Nexperia USA Inc.
Series	Automotive, AEC-Q101
Package	Tape & Reel
Product Status	Active
Transistor Type	NPN
Current - Collector (Ic) (Max)	100 mA
Voltage - Collector Emitter Breakdown (Max)	45 V
Vce Saturation (Max) @ Ib, Ic	200mV @ 500µA, 10mA
Current - Collector Cutoff (Max)	15nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	420 @ 2mA, 5V
Power - Max	250 mW
Frequency - Transition	100MHz
Temperature Range - Operating	150°C (TJ)
Mounting Type	Surface Mount
Package / Case	3-XFDFN
Supplier Device Package	DFN1006B-3
Base Product Number	BC847
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.21.0075
Win Source Part Number	1377035-BC847CMB,315
Ultra Librarian 3D Model	Ultra Librarian BC847CMB,315 CAD Model

Alternative Products

Description

The Nexperia USA Inc. BC847CMB,315 is a bipolar transistor used in various electronic applications.

Transistor Type: NPN
Maximum Collector Current (Ic): 100mA
Maximum Collector-Emitter Breakdown Voltage: 45V
Maximum Temperature: 150°C
Package: 3-XFDFN
Mounting: Surface Mount
DC Current Gain (hFE): 420
Saturation Voltage: 200mV
Application: Automotive
Standard Compliance: AEC-Q101
