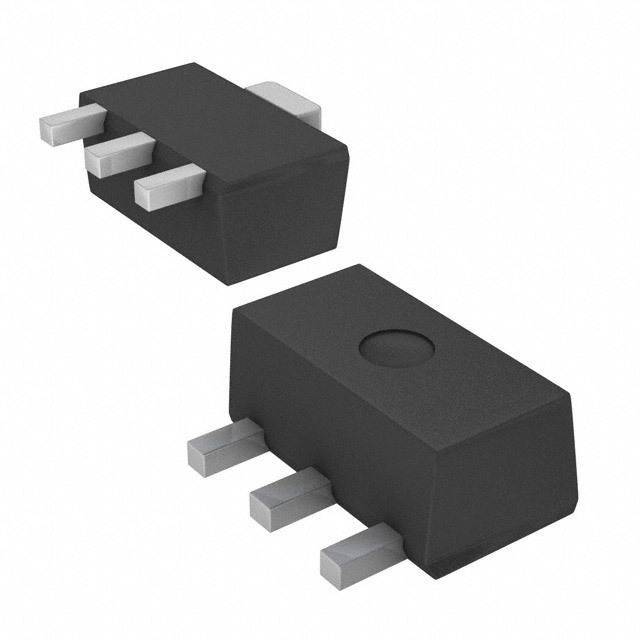

BCX55-16,135 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

BCX55-16,135

Part No BCX55-16,135
Manufacturer Nexperia USA Inc.
Catalog Transistors (BJT) - Single
Description TRANS NPN 60V 1A SOT89
Datasheet
BCX55-16,135 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Transistor Polarity NPN
Maximum Current Collector 1A
VCEO Maximum Collector-Emitter Breakdown Voltage 60V
Max Vce (sat) 500mV @ 50mA, 500mA
Collector Cut-off Current(Max) 100nA (ICBO)
Typical Gain (hFE) (Min) 100 @ 150mA, 2V
Maximum Power Dissipation 1.25W
Frequency - Transition 180MHz
Temperature Range - Operating 150°C (TJ)
Mounting SMD (SMT)
Case / Package SOT-89-3
Win Source Part Number 1022810-BCX55-16,135
Popularity Medium
Supply and Demand Status Sufficient
Application Field Used in Industrial, Power Management, Automotive
Ultra Librarian 3D Model Ultra Librarian BCX55-16,135 CAD Model

Description

The Nexperia BCX55-16,135 is an NPN transistor with a maximum collector-emitter breakdown voltage (VCEO) of 60V and a maximum collector current of 1A.

  • Maximum Collector-Emitter Breakdown Voltage (VCEO): 60V
  • Maximum Collector Current: 1A
  • Maximum Collector-Emitter Saturation Voltage (Vce (sat)): 500mV @ 50mA and 500mA
  • Typical Gain (hFE): 100 @ 150mA and 2V
  • Mounting Type: Surface Mount Technology
  • Package: SOT-89-3
  • Maximum Power Dissipation: 1.25W
  • Operating Temperature Range: 150°C (TJ)
  • Applications: Power Management, Industrial, and Automotive
