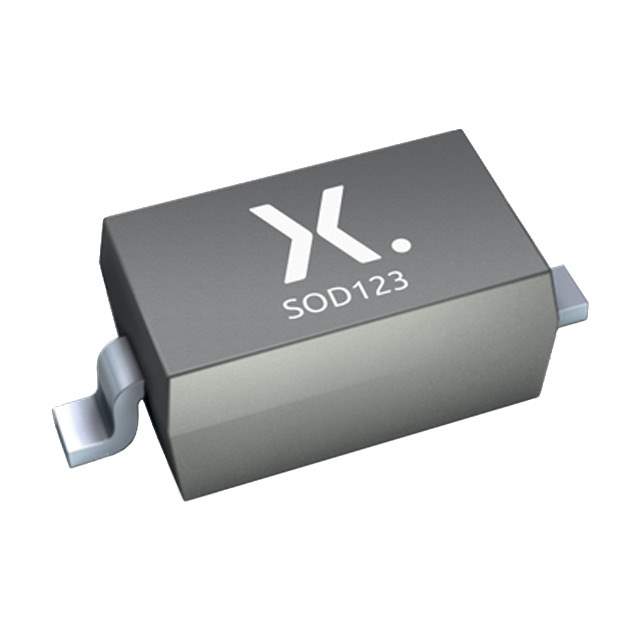

BZT52-B20X Real Image
Same model may have multiple batches, images only for reference.

BZT52-B20X

Part No BZT52-B20X
Manufacturer Nexperia USA Inc.
Catalog Diodes - Zener - Single
Description DIODE ZENER 20V 590MW SOD123  /  Zener Diode 20 V 590 mW ±2% Surface Mount SOD-123
Datasheet
BZT52-B20X Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Zener - Single
Mfr Nexperia USA Inc.
Series Automotive, AEC-Q101
Package Tape & Reel (TR)
Voltage - Zener (Nom) (Vz) 20 V
Tolerance ±2%
Power - Max 590 mW
Impedance (Max) (Zzt) 20 Ohms
Current - Reverse Leakage @ Vr 50 nA @ 14 V
Voltage - Forward (Vf) (Max) @ If 900 mV @ 10 mA
Temperature Range - Operating -55°C ~ 150°C (TA)
Mounting SMD (SMT)
Package / Case SOD-123
Supplier Device Package SOD-123
Base Product Number BZT52-B20
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0050
Other Names 934071178115
Standard Package 3,000
Win Source Part Number 1112679-BZT52-B20X
Ultra Librarian 3D Model Ultra Librarian BZT52-B20X CAD Model

Description

The BZT52-B20X is a zener diode from Nexperia USA Inc.

  • Zener Voltage (Vz): 20V
  • Maximum Power Dissipation: 590mW
  • Forward Voltage (Vf): 900mV @ 10mA
  • Reverse Leakage Current (Vr): 50nA @ 14V
  • Tolerance: ±2%
  • Impedance (Zzt): 20 Ohms
  • Package: SOD-123
  • Operating Temperature Range: -55°C to 150°C (TA)
  • Application: Discrete Semiconductor Products>Diodes - Zener - Single applications
