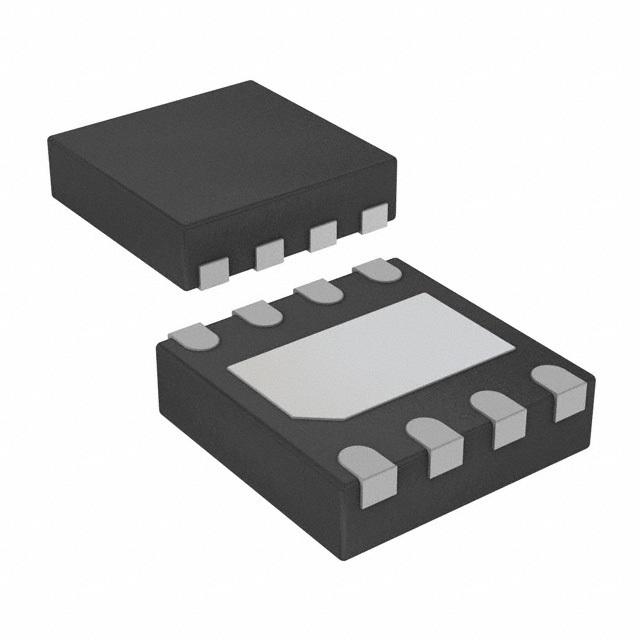

IP4264CZ8-20-TTL,1 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

IP4264CZ8-20-TTL,1

Part No IP4264CZ8-20-TTL,1
Manufacturer Nexperia USA Inc.
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER RC(PI) ESD SMD
Datasheet
IP4264CZ8-20-TTL,1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Type Low Pass
Filter Order 2nd
Technology RC (Pi)
Number of Channels 3
Attenuation Value 45dB @ 800MHz to 3GHz
Resistance - Channel (Ohms) 47, 100
Values R = 47 Ohms, 100 Ohms, C = 11pF (Total)
ESD Protection Yes
Temperature Range - Operating -30°C to 85°C
Applications Data Lines for Mobile Devices
Mounting SMD (SMT)
Dimension 0.067" L x 0.053" W (1.70mm x 1.35mm)
Height 0.022" (0.55mm)
Win Source Part Number 1045671-IP4264CZ8-20-TTL,1
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian IP4264CZ8-20-TTL,1 CAD Model

Description

The IP4264CZ8-20-TTL,1 from Nexperia USA Inc. is a low pass filter.

  • Number of Channels: 3
  • Attenuation: 45dB @ 800MHz to 3GHz
  • Mounting Type: SMD (SMT)
  • ESD Protection: Yes
  • Operating Temperature: -30°C to 85°C
  • Dimension: 0.067" L x 0.053" W (1.70mm x 1.35mm)
  • Popularity: High
  • Supply and Demand Status: Balanced
