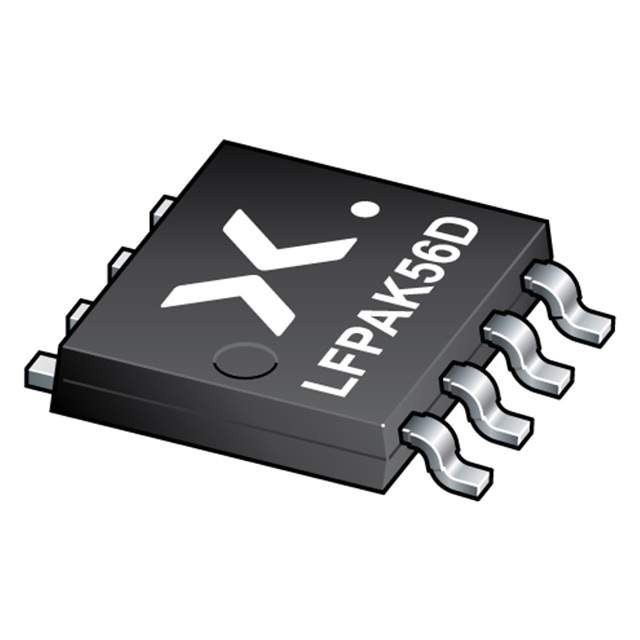

BUK7K15-80EX Real Image
Same model may have multiple batches, images only for reference.

BUK7K15-80EX

Part No BUK7K15-80EX
Manufacturer Nexperia USA Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET 2 N-CH 80V 23A LFPAK56D / Mosfet Array 2 N-Channel (Dual) 80V 23A (Ta) 68W Surface Mount LFPAK56D
Datasheet
BUK7K15-80EX Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Arrays
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
FET Type 2 N-Channel (Dual)
FET Feature Standard
Drain to Source Voltage (Vdss) 80V
Current - Continuous Drain (Id) @ 25°C 23A
Rds On (Max) @ Id, Vgs 15mOhm @ 10A, 10V
Vgs(th) (Max) @ Id 4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs 35.1nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds 2457pF @ 25V
Power - Max 68W
Temperature Range - Operating -55°C ~ 175°C (TJ)
Mounting Surface Mount
Case / Package SOT-1205, 8-LFPAK56
Supplier Device Package LFPAK56D
Base Product Number BUK7K15
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Other Part Number 1727-7402-2,BUK7K15-80EX-ND,1727-7402-1,1727-7402-6,934660014115
Standard Package 1,500
Win Source Part Number 1324349-BUK7K15-80EX
Ultra Librarian 3D Model Ultra Librarian BUK7K15-80EX CAD Model

Description

The Nexperia USA Inc. BUK7K15-80EX is a dual N-channel MOSFET transistor array, designed for use in discrete semiconductor products such as FETs.

  • Drain to Source Voltage (Vdss): 80V
  • Continuous Drain Current (Id): 23A @ 25°C
  • Maximum On-Resistance (Rds On): 15mOhm @ 10A and 10V gate-source voltage (Vgs)
  • Package: surface mount package with a LFPAK56D supplier device package
  • Gate Charge (Qg): 35.1nC @ 10V gate-source voltage (Vgs)
  • Input Capacitance (Ciss): 2457pF @ 25V drain-source voltage (Vds)
  • Power Dissipation: 68W
  • Operating Temperature Range: -55°C to 175°C (TJ)
  • Compliance: ROHS3 and REACH unaffected
