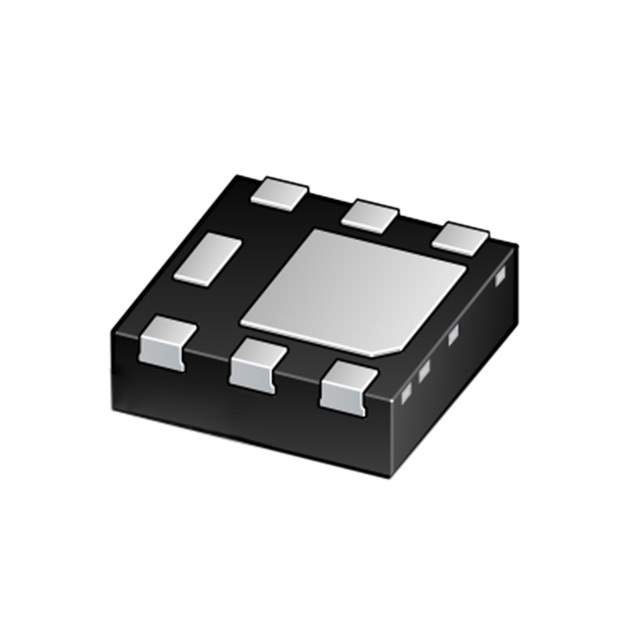

The Nexperia USA Inc. BUK9D23-40EX is a high-quality N-Channel MOSFET transistor that can be used in various applications.

• Drain to Source Voltage (Vdss): 40 V
• Current - Continuous Drain (Id) @ 25°C: 8A
• Rds On (Max) @ Id, Vgs: 23mOhm @ 8A, 10V
• Gate Charge (Qg) (Max) @ Vgs: 17 nC @ 10 V
• Input Capacitance (Ciss) (Max) @ Vds: 637 pF @ 20 V
• Vgs(th) (Max) @ Id: 2.1V @ 250μA
• Power Dissipation: 15W (Tc)
• Drive Voltage: 4.5V, 10V (Max Rds On, Min Rds On)
• Case/Package: 6-UDFN Exposed Pad
• Category: Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
• MSL Level: 1 (Unlimited)
• Supply and Demand Status: Balanced
