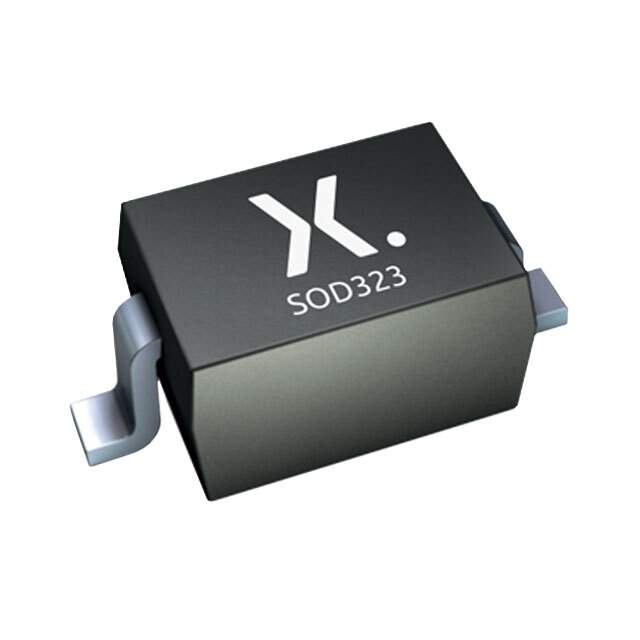

PMEG2010EAZ Real Image
Same model may have multiple batches, images only for reference.

PMEG2010EAZ

Part No PMEG2010EAZ
Manufacturer Nexperia USA Inc.
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 20V 1A SOD323 / Diode 20 V 1A Surface Mount SOD-323
Datasheet
PMEG2010EAZ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Nexperia USA Inc.
Series Automotive, AEC-Q100
Package Tape & Reel
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 20 V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 550 mV @ 1 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 50 µA @ 15 V
Capacitance @ Vr, F 19pF @ 5V, 1MHz
Mounting Type Surface Mount
Package / Case SC-76, SOD-323
Supplier Device Package SOD-323
Operating Temperature - Junction 125°C (Max)
Base Product Number PMEG2010
Standard Package 3,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1350353-PMEG2010EAZ
Ultra Librarian 3D Model Ultra Librarian PMEG2010EAZ CAD Model

Description

The Nexperia USA Inc. PMEG2010EAZ is a Fast Recovery product that has a speed of < 500ns, > 200mA (Io) and is a Schottky technology product. The package type is Tape & Reel, and the standard package is 3,000. It has a current - average rectified (Io) of 1A and a current - reverse leakage @ Vr of 50 μA @ 15 V. The package / case is SC-76, SOD-323, and the supplier device package is SOD-323. This Automotive, AEC-Q100 product is ideal for use in Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes.
