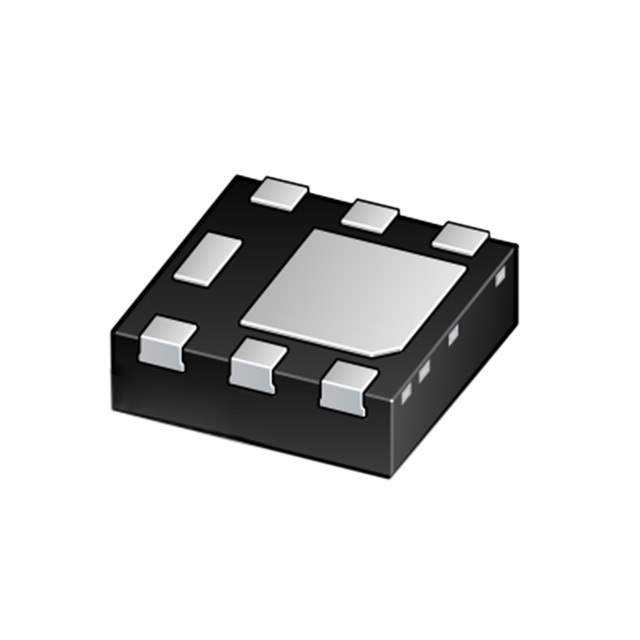

PMPB20ENZ Real Image
Same model may have multiple batches, images only for reference.

PMPB20ENZ

Part No PMPB20ENZ
Manufacturer Nexperia USA Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 30V 7.2A DFN2020MD-6 / N-Channel 30 V 7.2A (Ta) 1.7W (Ta), 12.5W (Tc) Surface Mount DFN2020MD-6
Datasheet
PMPB20ENZ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 30 V
Current - Continuous Drain (Id) @ 25°C 7.2A
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Rds On (Max) @ Id, Vgs 19.5mOhm @ 7A, 10V
Vgs(th) (Max) @ Id 2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 10.8 nC @ 10 V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 435 pF @ 10 V
Power Dissipation (Max) 1.7W, 12.5W (Tc)
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Surface Mount
Supplier Device Package DFN2020MD-6
Case / Package 6-UDFN Exposed Pad
Base Product Number PMPB20
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Other Part Number 934066626184
Standard Package 3,000
Win Source Part Number 1324625-PMPB20ENZ
Ultra Librarian 3D Model Ultra Librarian PMPB20ENZ CAD Model

Description

The Nexperia USA Inc. PMPB20ENZ MOSFET is a single N-Channel FET.

  • Drain to Source Voltage (Vdss): 30V
  • Continuous Drain Current (Id): 7.2A @ 25°C
  • Rds On (Max): 19.5mOhm @ 7A, 10V
  • Gate Charge (Qg): 10.8 nC @ 10V
  • Input Capacitance (Ciss): 435 pF @ 10Vds
  • Mounting: Surface Mount
  • Package: DFN2020MD-6
  • Temperature Range: -55°C to 150°C (TJ)
  • Power Dissipation: 1.7W, 12.5W (Tc)
  • RoHS3 Compliant: Yes
  • ECCN: EAR99
