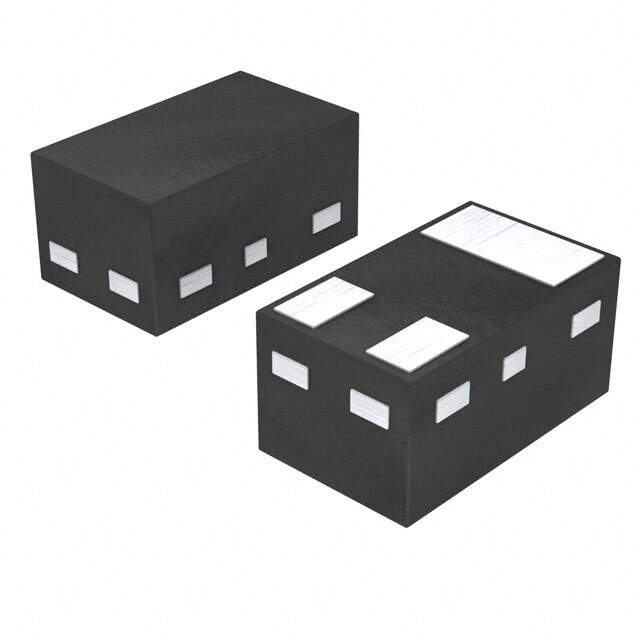

PMZB200UNEYL Real Image
Same model may have multiple batches, images only for reference.

PMZB200UNEYL

Part No PMZB200UNEYL
Manufacturer Nexperia USA Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 30V 1.4A DFN1006B-3 / N-Channel 30 V 1.4A (Ta) 350mW (Ta), 6.25W (Tc) Surface Mount DFN1006B-3
Datasheet
PMZB200UNEYL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 30 V
Current - Continuous Drain (Id) @ 25°C 1.4A
Drive Voltage (Max Rds On, Min Rds On) 1.5V, 4.5V
Rds On (Max) @ Id, Vgs 250mOhm @ 1.4A, 4.5V
Vgs(th) (Max) @ Id 950mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs 2.7 nC @ 4.5 V
Vgs (Max) ±8V
Input Capacitance (Ciss) (Max) @ Vds 89 pF @ 15 V
Power Dissipation (Max) 350mW, 6.25W (Tc)
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Surface Mount
Supplier Device Package DFN1006B-3
Case / Package 3-XFDFN
Base Product Number PMZB200
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Other Part Number 1727-2327-1,1727-2327-2,568-12613-2,568-12613-1,568-12613-6-ND,568-12613-1-ND,1727-2327-6,568-12613-6,568-12613-2-ND,934068606315
Standard Package 10,000
Win Source Part Number 1324627-PMZB200UNEYL
Ultra Librarian 3D Model Ultra Librarian PMZB200UNEYL CAD Model

Description

The PMZB200UNEYL is an N-channel MOSFET transistor from Nexperia USA Inc.

  • Drain-to-Source Voltage: 30V
  • Continuous Drain Current: 1.4A
  • On-Resistance: 250mΩ @ 1.4A, 4.5V
  • Package Size: DFN1006B-3
  • Gate Charge: 2.7nC @ 4.5V
  • Input Capacitance: 89pF @ 15V
  • RoHS3 Compliant: Yes
  • ECCN: EAR99
