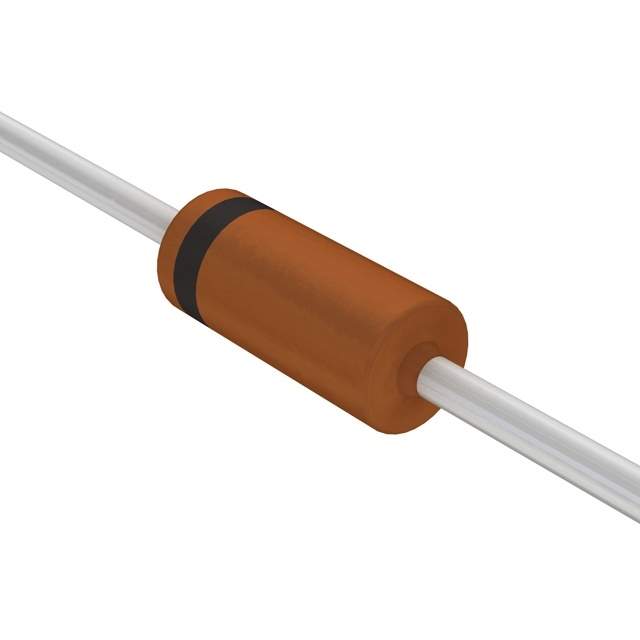

NZX18C,133

Name: NZX18C,133
Brand: Nexperia USA Inc.
SKU: 1083063
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	NZX18C,133
Manufacturer	Nexperia USA Inc.
Catalog	Diodes - Zener - Single
Description	DIODE ZENER 18.55V 500MW ALF2 / Zener Diode 18.55 V 500 mW ±2% Through Hole ALF2
Datasheet	NZX18C,133 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Diodes - Zener - Single
Mfr	Nexperia USA Inc.
Series	NZX
Package	Tape & Box (TB)
Voltage - Zener (Nom) (Vz)	18.55 V
Tolerance	±2%
Power - Max	500 mW
Impedance (Max) (Zzt)	55 Ohms
Current - Reverse Leakage @ Vr	50 nA @ 12.6 V
Voltage - Forward (Vf) (Max) @ If	1.5 V @ 200 mA
Temperature Range - Operating	-55°C ~ 175°C
Mounting Type	Through Hole
Package / Case	DO-204AH, DO-35, Axial
Supplier Device Package	ALF2
Base Product Number	NZX18
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0050
Other Names	934061996133
Standard Package	10,000
Win Source Part Number	1083063-NZX18C,133
Ultra Librarian 3D Model	Ultra Librarian NZX18C,133 CAD Model

Alternative Products

Description

The NZX18C,133 is a zener diode from the NZX series of Nexperia USA Inc.

Mounting Type: Through-Hole
Package: DO-204AH, DO-35, Axial
Power Rating: 500 mW
Voltage Forward: 1.5 V @ 200 mA
Reverse Leakage Current @ Vr: 50 nA @ 12.6 V
Zener Voltage: 18.55 V
Tolerance: ±2%
Maximum Impedance: 55 Ohms
Operating Temperature Range: -55°C to 175°C
REACH: Unaffected
ECCN: EAR99
MSL Level: 1 (unlimited)
Alternative Part Number: 934061996133
