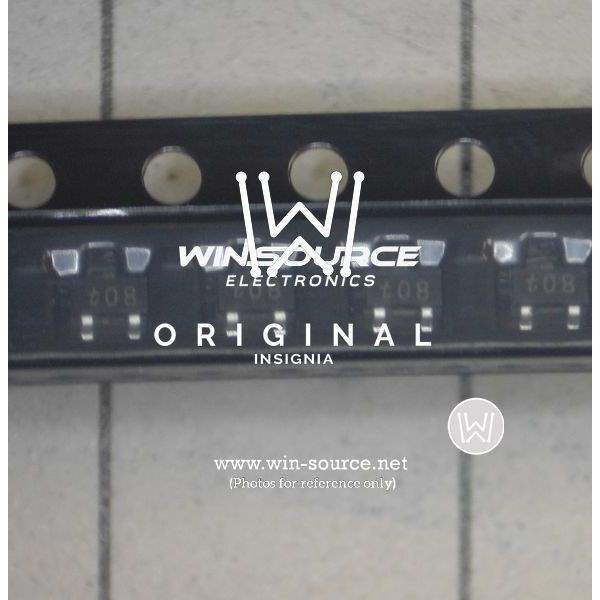

PDTC144EU,135 Nexperia USA Inc. PDTC144EU,135 real image
Same model may have multiple batches, images only for reference.
PDTC144EU,135 Nexperia USA Inc. PDTC144EU,135 real image
PDTC144EU,135 Nexperia USA Inc. PDTC144EU,135 real image
Same model may have multiple batches, images only for reference.

PDTC144EU,135

Part No PDTC144EU,135
Manufacturer Nexperia USA Inc.
Catalog Transistors (BJT) - Single, Pre - Biased
Description TRANS PREBIAS NPN 200MW SOT323
Datasheet
PDTC144EU,135 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Transistor Polarity NPN - Pre-Biased
Maximum Current Collector 100mA
VCEO Maximum Collector-Emitter Breakdown Voltage 50V
Resistor - Base (R1) (Ohms) 47k
Resistor - Emitter Base (R2) (Ohms) 47k
Typical Gain (hFE) (Min) 80 @ 5mA, 5V
Max Vce (sat) 150mV @ 500μA, 10mA
Collector Cut-off Current(Max) 1μA
Maximum Power Dissipation 200mW
Mounting SMD (SMT)
Case / Package SOT-323-3
Win Source Part Number 1087238-PDTC144EU,135
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Industrial, Automotive, Power Management
Ultra Librarian 3D Model Ultra Librarian PDTC144EU,135 CAD Model

Description

The PDTC144EU,135 is a pre-biased NPN transistor manufactured by Nexperia USA Inc.

  • Maximum Collector-Emitter Breakdown Voltage: 50V
  • Category: Discrete semiconductor products
  • Maximum Current Collector: 100mA
  • Package: SOT-323-3
  • Maximum Power Dissipation: 200mW
  • Typical Gain (hFE): 80 @ 5mA, 5V
  • Maximum Vce (sat): 150mV @ 500μA, 10mA
  • Collector Cut-Off Current (Max): 1μA
  • Frequency Transition: No
  • Supply and Demand Status: Balanced
  • Applications: Industrial, automotive, and power management applications
