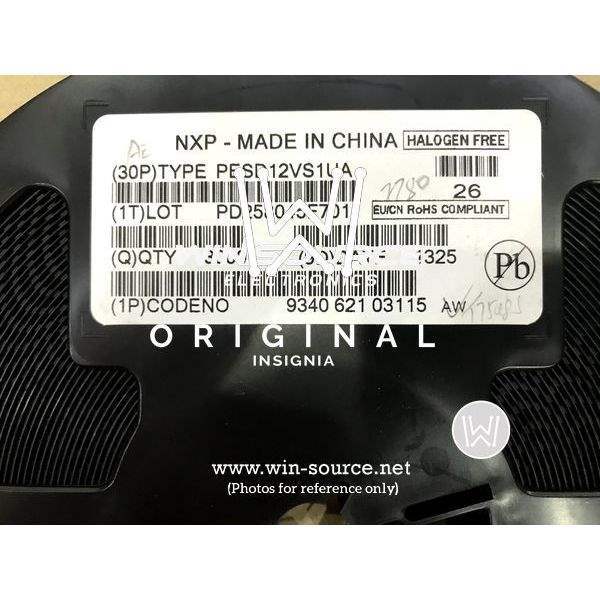

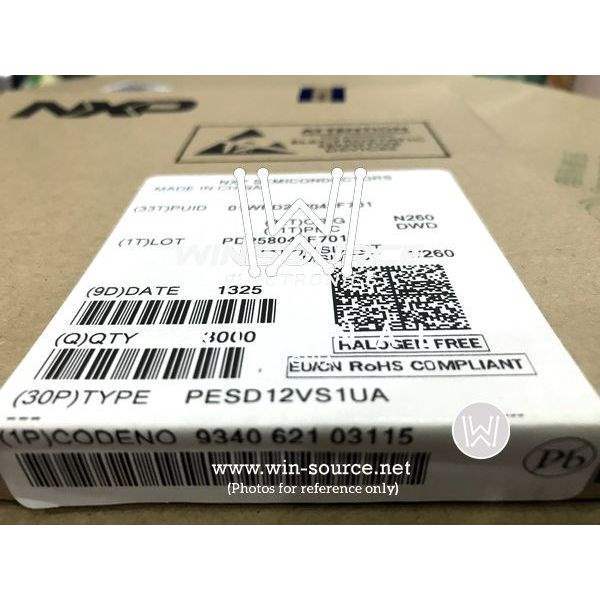

PESD12VS1UA,115 Nexperia USA Inc. PESD12VS1UA,115 label picture PESD12VS1UA,115 label picture 2 PESD12VS1UA,115 label picture 3 PESD12VS1UA,115 real image
Same model may have multiple batches, images only for reference.
PESD12VS1UA,115 Nexperia USA Inc. PESD12VS1UA,115 label picture PESD12VS1UA,115 label picture 2 PESD12VS1UA,115 label picture 3 PESD12VS1UA,115 real image
PESD12VS1UA,115 Nexperia USA Inc. PESD12VS1UA,115 label picture PESD12VS1UA,115 label picture 2 PESD12VS1UA,115 label picture 3 PESD12VS1UA,115 real image
Same model may have multiple batches, images only for reference.

PESD12VS1UA,115

Part No PESD12VS1UA,115
Manufacturer Nexperia USA Inc.
Catalog TVS - Diodes
Description TVS DIODE 12VWM 27VC SC76
Datasheet
PESD12VS1UA,115 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Type Zener
Unidirectional Channels 1
STAND-OFF Voltage (Vwm) 12V (Max)
Minimum Breakdown Voltage 13.3V
Max Clamping Voltage 27V
Peak Pulse Current(Ippm) 22.5A (8/20μs)
Power Dissipation - Pd 600W
Applications Automotive
Capacitance @ Frequency 160pF @ 1MHz
Temperature Range - Operating -55°C to 150°C (TA)
Mounting SMD (SMT)
Case / Package SOD-323
Win Source Part Number 1087511-PESD12VS1UA,115
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PESD12VS1UA,115 CAD Model

Description

The PESD12VS1UA,115 from Nexperia USA Inc. is a unidirectional zener diode designed for use in automotive applications.

  • Stand-off Voltage: 12V (Max)
  • Minimum Breakdown Voltage: 13.3V
  • Capacitance: 160pF @ 1MHz
  • Package: SOD-323
  • Max Clamping Voltage: 27V
  • Peak Pulse Current: 22.5A (8/20μs)
  • Power Dissipation: 600W
