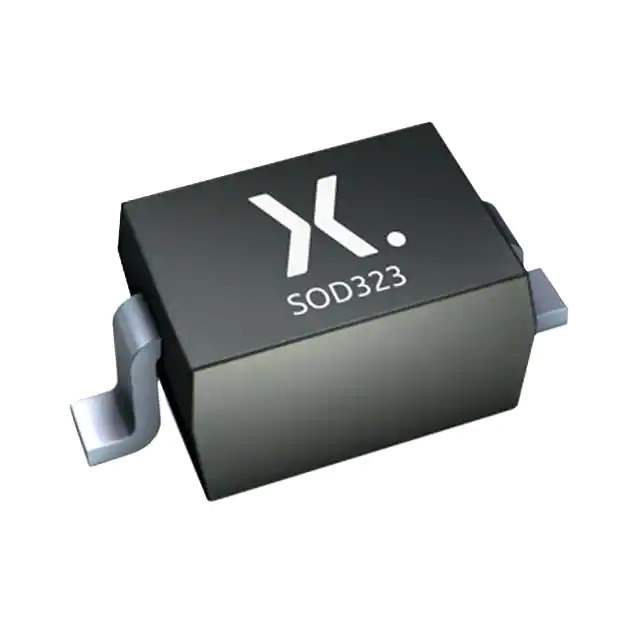

PESD27VV1BAX

Name: PESD27VV1BAX
Brand: Nexperia USA Inc.
SKU: 850683
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	PESD27VV1BAX
Manufacturer	Nexperia USA Inc.
Catalog	TVS - Diodes
Description	TVS DIODE 27VWM 45VC SOD323
Datasheet	PESD27VV1BAX Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr	Nexperia USA Inc.
Series	Automotive, AEC-Q101
Package	Tape & Reel
Product Status	Active
Type	Zener
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	27V (Max)
Voltage - Breakdown (Min)	28V
Voltage - Clamping (Max) @ Ipp	45V
Current - Peak Pulse (10/1000µs)	3A (8/20µs)
Power Line Protection	No
Applications	Automotive, Telecom
Capacitance @ Frequency	14pF @ 1MHz
Temperature Range - Operating	-55°C ~ 150°C (TA)
Mounting Type	Surface Mount
Package / Case	SC-76, SOD-323
Supplier Device Package	SOD-323
Base Product Number	PESD27
Standard Package	3,000 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0080
Win Source Part Number	850683-PESD27VV1BAX
Ultra Librarian 3D Model	Ultra Librarian PESD27VV1BAX CAD Model

Alternative Products

Description

The PESD27VV1BAX is a Zener-type transient voltage suppressor diode designed for circuit protection against electrostatic discharge (ESD) and other transient voltage events manufactured by Nexperia USA Inc.

Series: Automotive
AEC-Q101: Yes
Reverse Standoff Voltage: 27V
Breakdown Voltage: 28V
Clamping Voltage: 45V @ Peak Pulse Current
Peak Pulse Current Rating: 3A
Capacitance: 14pF @ 1MHz
Package: SC-76, SOD-323
Operating Temperature: -55°C to 150°C
Standard Package: 3,000 pcs
