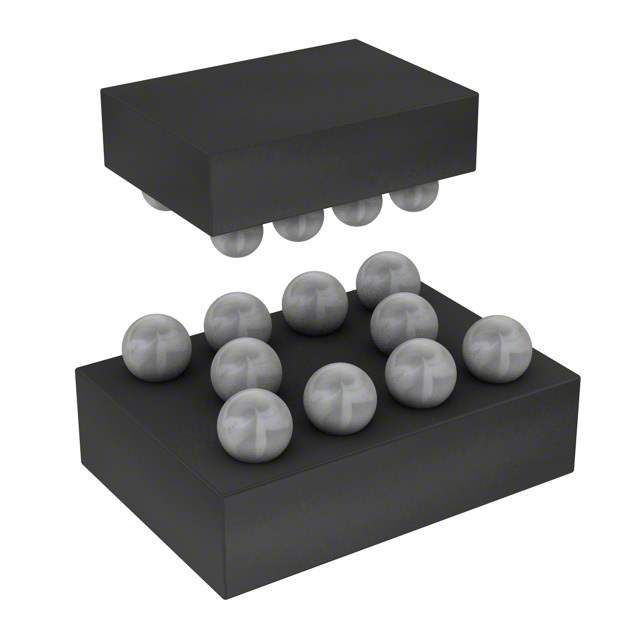

Same model may have multiple batches, images only for reference.

PESD2USB3SZ

Name: PESD2USB3SZ
Brand: Nexperia USA Inc.
SKU: 930275
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PESD2USB3SZ
Manufacturer	Nexperia USA Inc.
Catalog	TVS - Diodes
Description	TVS DIODE 5.5VWM 10WLCSP
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Circuit Protection
Estimated Pruduction Lead Time	26 Weeks
Features	- Clamp 7A (8/20µs) Ipp Tvs Diode Surface Mount 10-WLCSP (1.57x1.17)
Manufacturer	Nexperia USA Inc.
Package	Reel - TR
Operating Temperature Range	-40°C ~ 85°C (TA)
Mounting	Surface Mount
Package	10-UFBGA, WLCSP
Case / Package	10-WLCSP (1.57x1.17)
Family Name	PESD2USB3
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0080
Other Part Number	1727-2512-1, 568-12945-6-ND, 1727-2512-2, 568-12945-1, 934069684087, 1727-2512-6, 568-12945-2-ND, 568-12945-2, 568-12945-1-ND, 568-12945-6
Quantity per package	4500
Popularity	High
Supply and Demand Status	Balance
Win Source Part Number	930275-PESD2USB3SZ
Ultra Librarian 3D Model	Ultra Librarian PESD2USB3SZ CAD Model

Alternative Products

Description

The Nexperia PESD2USB3SZ clamp is a 7A (8/20µs) Ipp Tvs diode surface mount component designed for a range of circuit protection applications.

Package: 10-WLCSP (1.57x1.17)
Series: PESD2USB3
Popularity: high popularity component with a balance supply and demand status
ECCN: EAR99 certified
REACH: REACH unaffected
Package: 4,500 units per reel
Estimated Production Lead Time: 26 weeks
Applications: consumer electronics, automotive, and industrial applications
