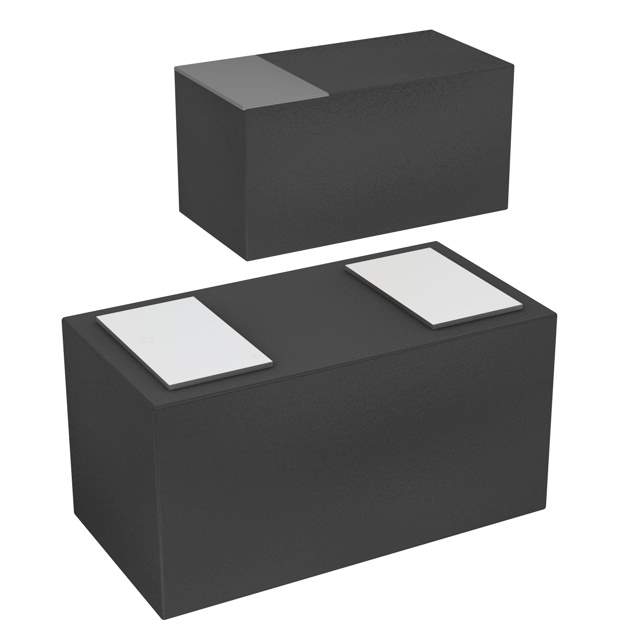

PESD5V0C1USFYL

Name: PESD5V0C1USFYL
Brand: Nexperia USA Inc.
SKU: 961067
Availability: InStock
Rating: 4.85 (48 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PESD5V0C1USFYL
Manufacturer	Nexperia USA Inc.
Catalog	TVS - Diodes
Description	TVS DIODE 5VWM 3VC DSN0603-2 / 3V Clamp 9A (8/20µs) Ipp Tvs Diode Surface Mount DSN0603-2
Datasheet	PESD5V0C1USFYL Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection>TVS - Diodes
Mfr	Nexperia USA Inc.
Series	TrEOS
Package	Tape & Reel
Type	Zener
Unidirectional Channels	1
Voltage - Reverse Standoff (Typ)	5V (Max)
Voltage - Breakdown (Min)	5.5V
Voltage - Clamping (Max) @ Ipp	3V
Current - Peak Pulse (10/1000µs)	9A (8/20µs)
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	0.45pF @ 1MHz
Temperature Range - Operating	-40°C ~ 125°C (TA)
Mounting	SMD (SMT)
Package / Case	0201 (0603 Metric)
Supplier Device Package	DSN0603-2
Base Product Number	PESD5V0
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0080
Other Names	568-12340-2-ND,568-12340-6-ND,568-12340-1-ND,PESD5V0C1USFYL-ND,1727-2176-1,1727-2176-2,1727-2176-6,568-12340-6,934068767315,568-12340-1,568-12340-2,9340 687 67315,PESD5V0C1USFYLINACTIVE,PESD5V0C1USF
Standard Package	9,000
Win Source Part Number	961067-PESD5V0C1USFYL
Ultra Librarian 3D Model	Ultra Librarian PESD5V0C1USFYL CAD Model

Alternative Products

Description

The TrEOS series Zener diode, PESD5V0C1USFYL, is designed for general purpose applications in circuit protection.

Voltage Reverse Standoff: 5V
Voltage Breakdown Minimum: 5.5V
Voltage Clamping @ Maximum: 3V @ Ipp
Power Peak Pulse: Not specified
Capacitance @ Frequency: 0.45pF @ 1MHz
Current Peak Pulse: 9A @ 8/20µs
Package/Case: 0201 (0603 Metric)
Supplier Device Package: DSN0603-2
Operating Temperature: -40°C to 125°C (TA)
Packaging: Tape and reel
Standard Package: 9,000
ECCN: EAR99
MSL Level: 1 (unlimited)
REACH Status: REACH unaffected
HTSUS: 8541.10.0080
Manufacturer: Nexperia USA Inc.
