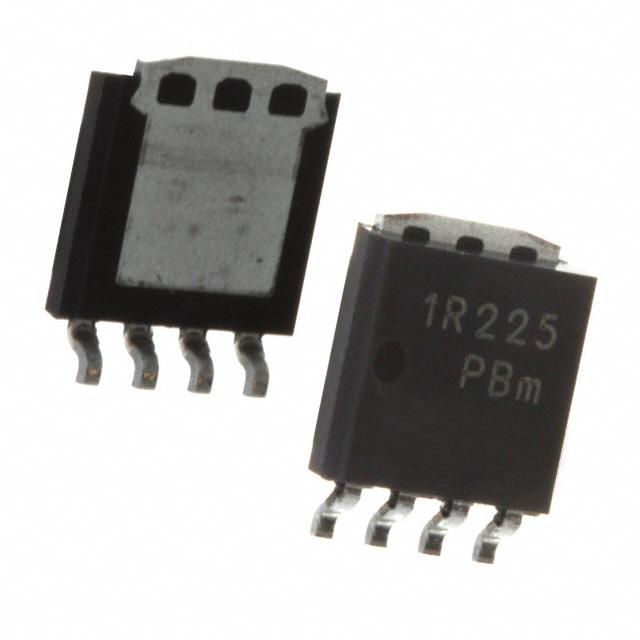

Same model may have multiple batches, images only for reference.
PH1225AL,115 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

PH1225AL,115

Part No PH1225AL,115
Manufacturer Nexperia USA Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 25V 100A LFPAK
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 25V
Continuous Drain Current at 25°C 100A (Tc)
Gate-Source Threshold Voltage 2.15V @ 1mA
Max Gate Charge 105nC @ 10V
Max Input Capacitance 6380pF @ 12V
Maximum Rds On at Id,Vgs 1.2 mOhm @ 15A, 10V
Mounting SMD (SMT)
Case / Package LFPAK56, Power-SO8
Dimension SOT-1023, 4-LFPAK
Win Source Part Number 1087744-PH1225AL,115
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PH1225AL,115 CAD Model

Description

The Nexperia USA Inc. 1087744-PH1225AL,115 is a medium popularity electronic component that comes in a LFPAK56, Power-SO8 case/package.

  • Technology: MOSFET
  • Polarity: N-Channel
  • Drain-Source Breakdown Voltage: 25V
  • Continuous Drain Current: 100A (Tc) @ 25°C
  • Gate-Source Threshold Voltage: 2.15V @ 1mA
