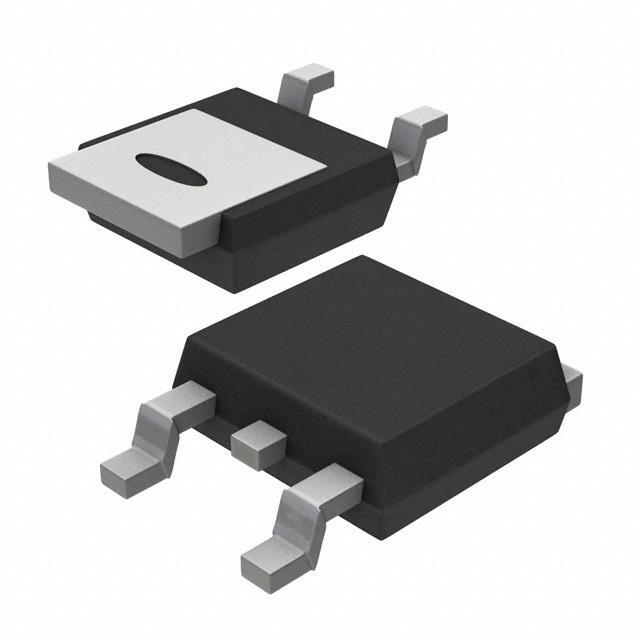

Same model may have multiple batches, images only for reference.
PHD97NQ03LT,118 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

PHD97NQ03LT,118

Part No PHD97NQ03LT,118
Manufacturer Nexperia USA Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 25V 75A DPAK / Trans MOSFET N-CH 25V 75A 3-Pin(2+Tab) DPAK T/R
Datasheet
PHD97NQ03LT,118 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Nexperia USA Inc.
Series TrenchMOS
Packaging Reel package
Channel Type Type N
Technology MOSFET
Drain Source Voltage 25V
Current - Continuous Drain (Id) @ 25°C 75A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Vgs(th) (Maximum) @ Id 2.15V @ 1mA
Gate Charge (Qg) (Maximum) @ Vgs 11.7nC @ 4.5V
Input Capacitance (Ciss) (Maximum) @ Vds 1570pF @ 12V
Vgs (Maximum) ±20V
Power Dissipation (Maximum) 107W (Tc)
Rds On (Maximum) @ Id, Vgs 6.3 mOhm @ 25A, 10V
Operating Temperature Range -55°C ~ 175°C (TJ)
Mounting SMD
Manufacturer Package DPAK
Package TO-252-3, DPak (2 Leads + Tab), SC-63
Win Source Part Number 791766-PHD97NQ03LT,118
Popularity Medium
Supply and Demand Status Limited
Family Name PHD97NQ03LT
Introduction Date March 24, 2009
ECCN EAR99
Country of Origin Philippines
Halogen Free Compliant
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian PHD97NQ03LT,118 CAD Model

Description

The Nexperia USA Inc. PHD97NQ03LT,118 is a N-channel MOSFET transistor with a maximum drain-source voltage of 25V and a continuous drain current of 75A @ 25°C. It is a member of the TrenchMOS series, which provides a low on-state resistance and a fast switching performance.

  • Transistor Type: N-Channel MOSFET
  • Drain-Source Voltage: 25V
  • Continuous Drain Current: 75A @ 25°C
  • Series: TrenchMOS
  • Applications: Power Supplies, DC-DC Converters, Motor Control
  • Power Dissipation: 107W
  • Temperature Range: -55°C to 175°C
