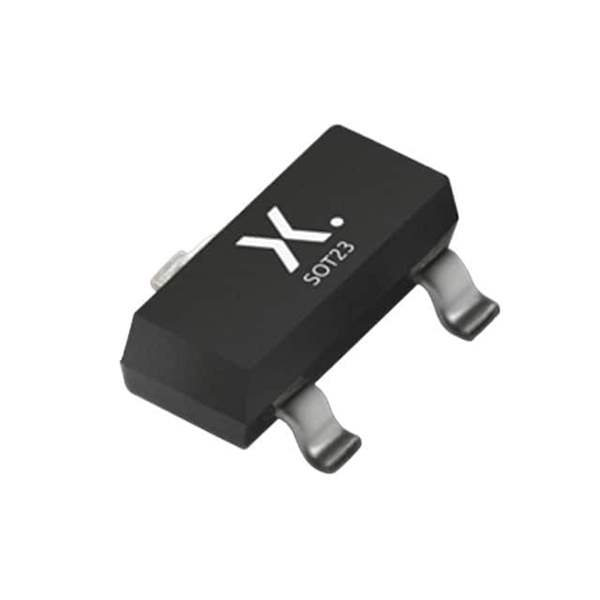

Part No PMBD7000,235
Manufacturer Nexperia USA Inc.
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY GP 100V 215MA SOT23
Datasheet
PMBD7000,235 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Estimated Pruduction Lead Time 26 Weeks
Features Diode Array 1 Pair Series Connection Standard 100 V 215mA (DC) Surface Mount TO-236-3, SC-59, SOT-23-3
Manufacturer Nexperia USA Inc.
Package Reel - TR
Speed Fast Recovery =< 500ns, > 200mA (Io)
Mounting Surface Mount
Package TO-236-3, SC-59, SOT-23-3
Case / Package TO-236AB
Family Name PMBD7000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0070
Other Part Number PMBD7000235, 1727-4324-1, 568-5031-1-ND, 1727-4324-6, 1727-4324-2, 568-5031-6-ND, 933859210235, 568-5031-6, PMBD7000 /T3, 568-5031-2-ND, 568-5031-1, PMBD7000 /T3-ND, PMBD7000,235-ND, 568-5031-2
Quantity per package 10000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 890050-PMBD7000,235
Ultra Librarian 3D Model Ultra Librarian PMBD7000,235 CAD Model

Description

The Nexperia PMBD7000 diode array is a 1 pair series connection standard manufactured by Nexperia.

  • Diode Configuration: 1 Pair Series Connection
  • Recovery Time (trr): Fast < 500ns
  • Current - Max (If): > 200mA
  • Mounting Type: Surface Mount
  • Package / Case: TO-236-3, SC-59, SOT-23-3
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • ECCN: EAR99
  • REACH Status: Unaffected
  • Quantity Per Package: 10,000
  • Production Lead Time: 26 Weeks (Estimated)
