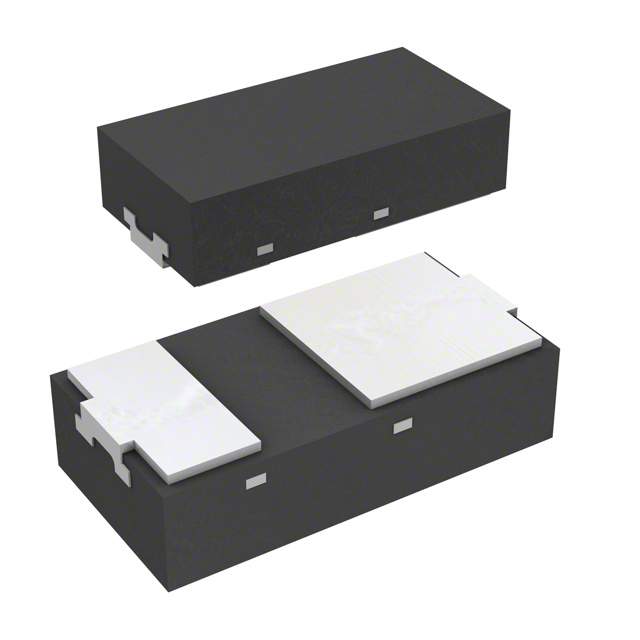

PMEG2005EPK,315 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

PMEG2005EPK,315

Part No PMEG2005EPK,315
Manufacturer Nexperia USA Inc.
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 20V 500MA 2DFN
Datasheet
PMEG2005EPK,315 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 20V
Current - Average Rectified (Io) 500mA
Voltage - Forward (Vf) (Max) @ If 410mV @ 500mA
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 3ns
Current - Reverse Leakage @ Vr 130μA @ 10V
Capacitance @ Vr, F 35pF @ 1V, 1MHz
Mounting SMD (SMT)
Case / Package DFN1608D-2
Operating Temperature - Junction 150°C (Max)
Win Source Part Number 1089544-PMEG2005EPK,315
Popularity Medium
Supply and Demand Status Sufficient
Application Field Used in Power Management, Industrial
Ultra Librarian 3D Model Ultra Librarian PMEG2005EPK,315 CAD Model

Description

The Nexperia USA Inc. PMEG2005EPK,315 is a Schottky diode type mounted on an SMD (SMT) package.

  • Maximum Reverse Voltage: 20V
  • Average Rectified Current: 500mA
  • Voltage Forward: 410mV @ 500mA
  • Reverse Recovery Time: 3ns
  • Current Reverse Leakage: 130μA @ 10V
  • Capacitance: 35pF @ 1V, 1MHz
  • Operating Temperature: Up to 150°C
