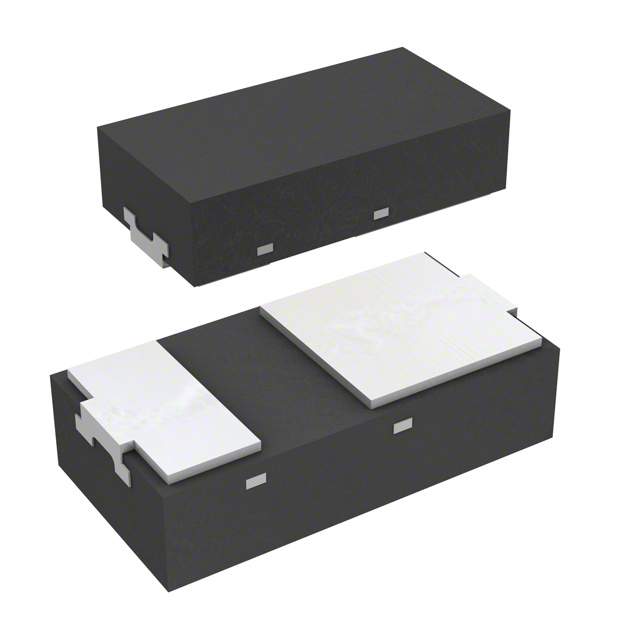

PMEG2010EPK,315 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

PMEG2010EPK,315

Part No PMEG2010EPK,315
Manufacturer Nexperia USA Inc.
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 20V 1A 2DFN
Datasheet
PMEG2010EPK,315 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 20V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 415mV @ 1A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 4ns
Current - Reverse Leakage @ Vr 600μA @ 20V
Capacitance @ Vr, F 65pF @ 1V, 1MHz
Mounting SMD (SMT)
Case / Package DFN1608D-2
Operating Temperature - Junction 150°C (Max)
Win Source Part Number 1089556-PMEG2010EPK,315
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PMEG2010EPK,315 CAD Model

Description

The Nexperia USA Inc. PMEG2010EPK,315 is a Schottky diode that comes in a reel - TR packaging.

  • Packaging: Reel - TR
  • Voltage Rating: 20V
  • Average Rectified Current Rating: 1A
  • Forward Voltage Drop (Vf): 415mV @ 1A
  • Reverse Leakage Current: 600μA @ 20V
  • Reverse Recovery Time (trr): 4ns
  • Capacitance: 65pF @ 1V, 1MHz
  • Temperature Range: 150°C (Max)
  • Case/Package: DFN1608D-2
  • Pack Size: 1
  • Supply and Demand Status: Balanced
