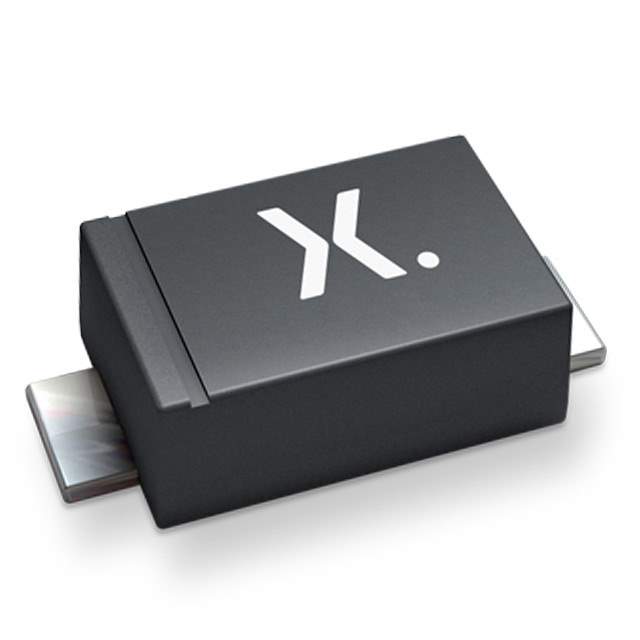

PMEG4030ER/8X Real Image
Same model may have multiple batches, images only for reference.

PMEG4030ER/8X

Part No PMEG4030ER/8X
Manufacturer Nexperia USA Inc.
Catalog Diodes, Rectifiers - Single
Datasheet
PMEG4030ER/8X Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Nexperia USA Inc.
Series Automotive, AEC-Q101
Package Tape & Reel
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 40 V
Current - Average Rectified (Io) 3A
Voltage - Forward (Vf) (Max) @ If 540 mV @ 3 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 100 µA @ 40 V
Capacitance @ Vr, F 95pF @ 10V, 1MHz
Mounting SMD (SMT)
Package / Case SOD-123W
Supplier Device Package SOD-123W
Operating Temperature - Junction 150°C (Max)
Base Product Number PMEG4030
Other Names 1727-7643-1,1727-7643-2,PMEG4030ER/8X,1727-7643-6,934070021115
Standard Package 3,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1282247-PMEG4030ER/8X
Ultra Librarian 3D Model Ultra Librarian PMEG4030ER/8X CAD Model

Description

The PMEG4030ER/8X is a fast recovery Schottky diode that is part of the automotive AEC-Q101 series. Manufactured by Nexperia USA Inc.

  • Voltage - DC Reverse (Vr) (Max): 40 V
  • Current - Average Rectified (Io): 3 A
  • Voltage - Forward (Vf) (Max) @ If: 540 mV @ 3 A
  • Current - Reverse Leakage @ Vr: 100 µA @ 40 V
  • Capacitance @ Vr, F: 95pF @ 10V, 1MHz
  • Operating Temperature - Junction: 150°C (Max)
  • Package: SOD-123W
