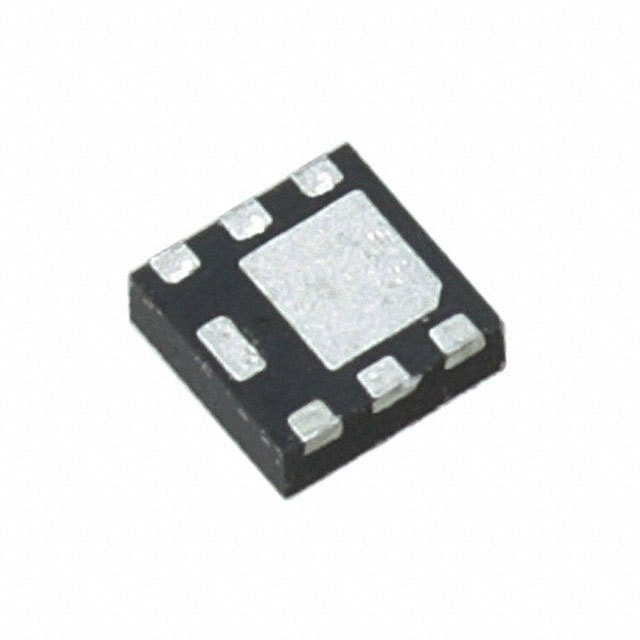

PMPB33XP,115 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

PMPB33XP,115

Part No PMPB33XP,115
Manufacturer Nexperia USA Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET P-CH 20V 5.5A 6DFN
Datasheet
PMPB33XP,115 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Polarity P-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 20V
Continuous Drain Current at 25°C 5.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 1.8V, 4.5V
Gate-Source Threshold Voltage 900mV @ 250μA
Max Gate Charge 23nC @ 4.5V
Max Input Capacitance 1575pF @ 10V
Maximum Gate-Source Voltage ±12V
Power Dissipation (Max) 1.7W (Ta), 12.5W (Tc)
Maximum Rds On at Id,Vgs 37 mOhm @ 5.5A, 4.5V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 6-DFN2020MD (2x2)
Dimension 6-UDFN Exposed Pad
Win Source Part Number 1089737-PMPB33XP,115
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian PMPB33XP,115 CAD Model

Description

The PMPB33XP,115 is a P-channel MOSFET manufactured by Nexperia USA Inc.

  • Package: Reel-tray
  • Mounting: SMD (SMT)
  • Breakdown Voltage: 20V
  • Continuous Drain Current: 5.5A (Ta) @ 25°C
  • Maximum Rds On @ Id, Vgs: 37mOhm @ 5.5A, 4.5V
  • Maximum Gate-Source Voltage: ±12V
  • Maximum Gate Charge: 23nC @ 4.5V
  • Suitable for: Discrete Semiconductor Products
  • Popularity Rating: Medium
