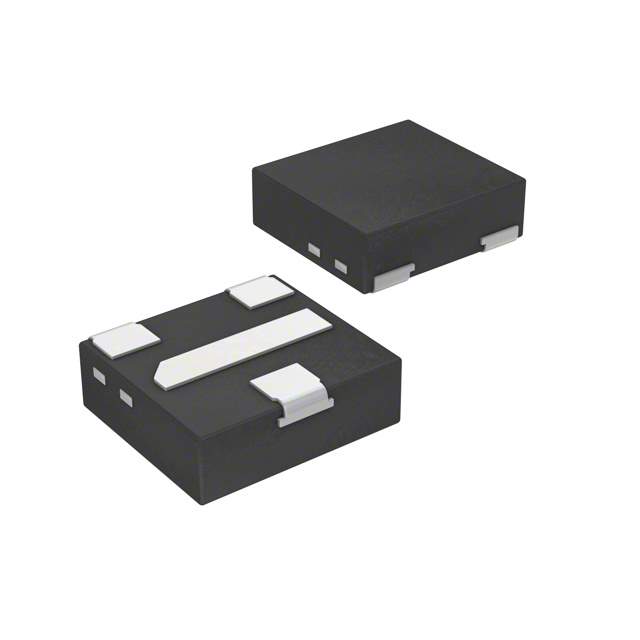

PMXB120EPEZ Real Image
Same model may have multiple batches, images only for reference.

PMXB120EPEZ

Part No PMXB120EPEZ
Manufacturer Nexperia USA Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET P-CH 30V 2.4A DFN1010D-3
Datasheet
PMXB120EPEZ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Polarity P-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 30V
Continuous Drain Current at 25°C 2.4A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Gate-Source Threshold Voltage 2.5V @ 250μA
Max Gate Charge 11nC @ 10V
Max Input Capacitance 309pF @ 15V
Maximum Gate-Source Voltage ±20V
Power Dissipation (Max) 400mW (Ta), 8.3W (Tc)
Maximum Rds On at Id,Vgs 120 mOhm @ 2.4A, 10V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package DFN1010D-3
Dimension 3-XDFN Exposed Pad
Win Source Part Number 1089809-PMXB120EPEZ
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian PMXB120EPEZ CAD Model

Description

The Nexperia USA Inc. PMXB120EPEZ is a MOSFET electronic component that is designed to provide reliable and efficient performance in various electronic applications.

  • Polarity: P-channel
  • Drain-Source Breakdown Voltage: 30V
  • Continuous Drain Current: 2.4A (Ta) @ 25°C
