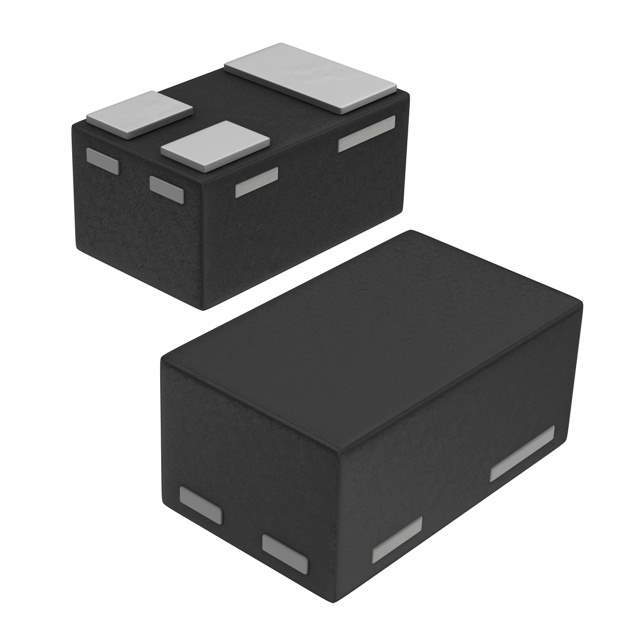

PMZ1200UPEYL Real Image
Same model may have multiple batches, images only for reference.

PMZ1200UPEYL

Part No PMZ1200UPEYL
Manufacturer Nexperia USA Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET P-CH 30V 410MA DFN1006-3  /  P-Channel 30 V 410mA (Ta) 310mW (Ta), 1.67W (Tc) Surface Mount SOT-883
Datasheet
PMZ1200UPEYL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr Nexperia USA Inc.
Package Tape & Reel
FET Type P-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 30 V
Current - Continuous Drain (Id) @ 25°C 410mA (Ta)
Drive Voltage (Max Rds On, Min Rds On) 1.5V, 4.5V
Rds On (Max) @ Id, Vgs 1.4Ohm @ 410mA, 4.5V
Vgs(th) (Max) @ Id 950mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs 1.2 nC @ 4.5 V
Vgs (Max) ±8V
Input Capacitance (Ciss) (Max) @ Vds 43.2 pF @ 15 V
Power Dissipation (Max) 310mW (Ta), 1.67W (Tc)
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting SMD (SMT)
Supplier Device Package SOT-883
Package / Case SC-101, SOT-883
Base Product Number PMZ1200
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Other Names 1727-2315-2,568-12601-2,568-12601-1,934069329315,1727-2315-1,1727-2315-6,568-12601-1-ND,568-12601-2-ND,568-12601-6,568-12601-6-ND
Standard Package 10,000
Win Source Part Number 1085730-PMZ1200UPEYL
Ultra Librarian 3D Model Ultra Librarian PMZ1200UPEYL CAD Model

Description

The PMZ1200UPEYL is a P-Channel MOSFET transistor from Nexperia USA Inc.

  • Drain to Source Voltage (Vdss): 30 V
  • Continuous Drain Current (Id): 410mA (Ta) @ 25°C
  • On-Resistance (Rds On): 1.4Ohm @ 410mA and 4.5V
  • Gate-Source Threshold Voltage (Vgs(th)): 950mV @ 250μA
  • Power Dissipation: 310mW (Ta) and 1.67W (Tc)
  • Package: SC-101, SOT-883
  • Operating Temperature: -55°C to 150°C (TJ)
  • Gate Charge (Qg): 1.2 nC @ 4.5Vgs
  • Input Capacitance (Ciss): 43.2 pF @ 15Vds
  • Gate-Source Voltage (Vgs): ±8V
