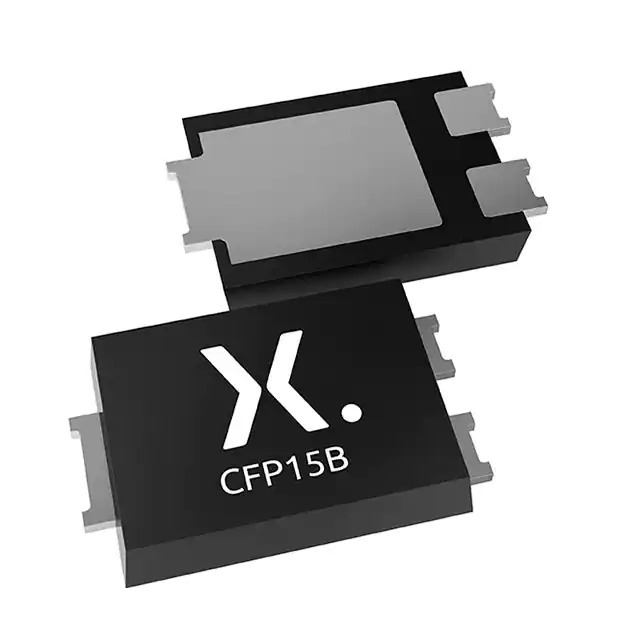

Same model may have multiple batches, images only for reference.
PNE200100CPEZ Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

PNE200100CPEZ

Part No PNE200100CPEZ
Manufacturer Nexperia USA Inc.
Catalog Diodes, Rectifiers - Arrays
Description PNE200100CPE/SOT1289B/CFP15
Datasheet
PNE200100CPEZ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Diode Arrays
Mfr Nexperia USA Inc.
Series Automotive, AEC-Q101
Package Tape & Reel
Product Status Active
Diode Configuration 1 Pair Common Cathode
Technology Standard
Voltage - DC Reverse (Vr) (Max) 200 V
Current - Average Rectified (Io) (per Diode) 5A
Voltage - Forward (Vf) (Max) @ If 950 mV @ 5 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 30 ns
Current - Reverse Leakage @ Vr 1 µA @ 200 V
Operating Temperature - Junction 175°C (Max)
Mounting Type Surface Mount
Package / Case TO-277, 3-PowerDFN
Supplier Device Package CFP15B
Base Product Number PNE200100
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1366948-PNE200100CPEZ
Ultra Librarian 3D Model Ultra Librarian PNE200100CPEZ CAD Model

Description

The PNE200100CPEZ is a diode array designed for rectification applications.

  • Series: Nexperia Automotive
  • Compliance: AEC-Q101
  • Maximum Reverse Voltage: 200V
  • Forward Voltage: 950mV @ 5A
  • Reverse Recovery Time: 30ns
  • Maximum Junction Temperature: 175°C
  • Diode Configuration: Common Cathode (1 pair)
  • Package: TO-277 (Surface Mount)
