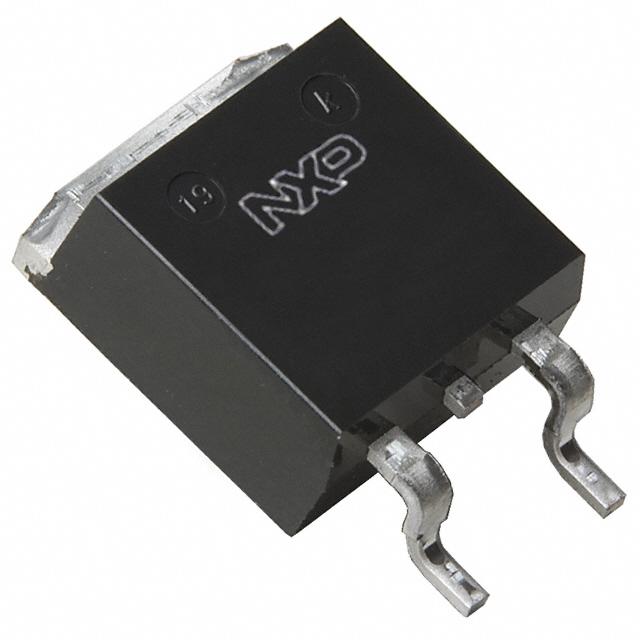

The PSMN027-100BS,118 is a MOSFET discrete semiconductor product from Nexperia USA Inc. with an N-channel polarity.

• Maximum Power Dissipation: 103W (Tc)
• Continuous Drain Current: 37A (Tc) @ 25°C
• Drive Voltage: 10V
• Temperature Range: -55°C to 175°C (TJ)
• Mounted Using: surface-mount technology (SMT)
• Package: D2PAK with a TO-263-3, D2Pak (2 Leads + Tab), TO-263AB dimension
• Drain-Source Breakdown Voltage: 100V
• Gate-Source Threshold Voltage: 4V @ 1mA
• Maximum Gate Charge: 30nC @ 10V
• Maximum Input Capacitance: 1624pF @ 50V
