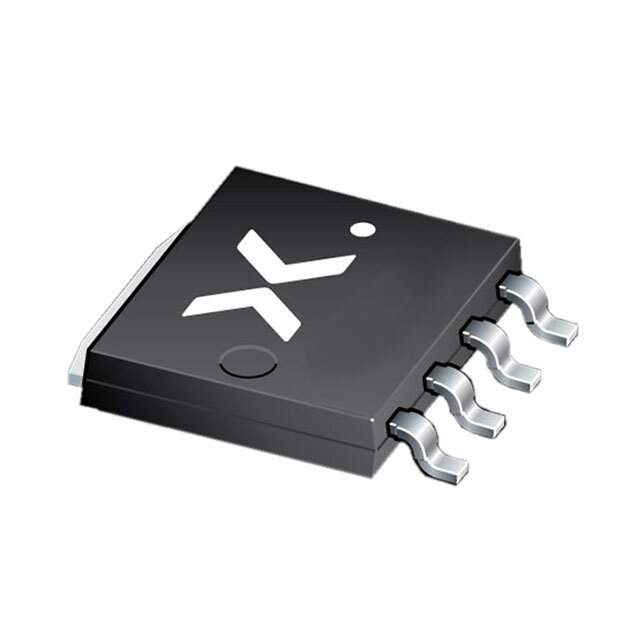

PSMN0R7-25YLDX

Name: PSMN0R7-25YLDX
Brand: Nexperia USA Inc.
SKU: 993824
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	PSMN0R7-25YLDX
Manufacturer	Nexperia USA Inc.
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CH 25V 300A LFPAK56 / N-Channel 25 V 300A (Tc) 158W (Tc) Surface Mount LFPAK56; Power-SO8
Datasheet	PSMN0R7-25YLDX Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr	Nexperia USA Inc.
Package	Tape & Reel
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	25 V
Current - Continuous Drain (Id) @ 25°C	300A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	0.72mOhm @ 25A, 10V
Vgs(th) (Max) @ Id	2.2V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	110.2 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	8320 pF @ 12 V
Power Dissipation (Max)	158W (Tc)
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting	SMD (SMT)
Supplier Device Package	LFPAK56; Power-SO8
Package / Case	SOT-1023, 4-LFPAK
Base Product Number	PSMN0R7
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095
Other Names	568-12952-1,568-12952-2-ND,1727-2514-1,1727-2514-2,934069083115,568-12952-2,568-12952-6-ND,PSMN0R7-25YLDX-ND,1727-2514-6,568-12952-1-ND,568-12952-6
Standard Package	1,500
Win Source Part Number	993824-PSMN0R7-25YLDX
Ultra Librarian 3D Model	Ultra Librarian PSMN0R7-25YLDX CAD Model

Alternative Products

Description

The PSMN0R7-25YLDX is an N-channel MOSFET transistor that is designed for use in Discrete Semiconductor Products.

Maximum Power Rating: 158W (Tc)
Maximum Drain-to-Source Voltage: 25 V
Maximum Continuous Drain Current: 300A (Tc)
Rds On (Max): 0.72mOhm @ 25A, 10V
Vgs(th) (Max) @ Id: 2.2V @ 1mA
Gate Charge (Qg) (Max) @ Vgs: 110.2 nC @ 10 V
Package: SOT-1023, 4-LFPAK
Temperature Range: -55°C to 150°C (TJ)
Manufacturer: Nexperia USA Inc.
