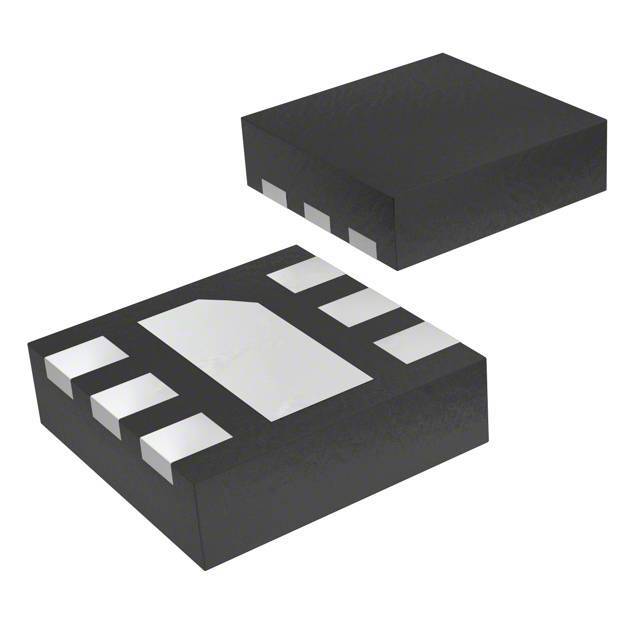

PUSBM15VX4-TL,115 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

PUSBM15VX4-TL,115

Part No PUSBM15VX4-TL,115
Manufacturer Nexperia USA Inc.
Catalog TVS - Diodes
Description TVS DIODE 5.5VWM 12VC 6HXSON / ESD Suppressor Diode Diode Array Uni-Dir 15V 6-Pin HXSON EP T/R
Datasheet
PUSBM15VX4-TL,115 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Nexperia USA Inc.
Packaging Reel package
Part Status Obsolete(EOL)
Type Steering (Rail to Rail)
Unidirectional Channels 3
Voltage - Reverse Standoff (Typ) 5.5V (Maximum)
Minimum Breakdown Voltage 17V
Maximum Clamping Voltage 12V
Current - Peak Pulse (10/1000μs) 3A (8/20μs)
Power - Peak Pulse 35W
Power Line Protection Yes
Applications USB OTG
Operating Temperature Range -30°C ~ 85°C (TA)
Mounting SMD
Package 6-XFDFN Exposed Pad
Manufacturer Package 6-DFN1616 (1.6x1.6)
Win Source Part Number 792738-PUSBM15VX4-TL,115
Popularity Medium
Supply and Demand Status Limited
Family Name PUSBM15VX4-TL
Introduction Date December 09, 2011
ECCN EAR99
Country of Origin Thailand
Halogen Free Compliant
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian PUSBM15VX4-TL,115 CAD Model

Description

The Nexperia USA Inc. PUSBM15VX4-TL,115 is a steering diode designed for USB OTG applications.

  • Maximum Reverse Standoff Voltage: 5.5V
  • Peak Pulse Current: 3A (8/20μs)
  • Package: 6-XFDFN exposed pad
  • Operating Temperature Range: -30°C to 85°C
  • Minimum Breakdown Voltage: 17V
  • Status: Obsolete (EOL)
  • Alternative Parts: PUSBM15VX4-TL, PUSBM30VX4-TL, PUSBM30VX4-TL,115
  • Halogen-Free: Yes
  • Popularity: Medium
