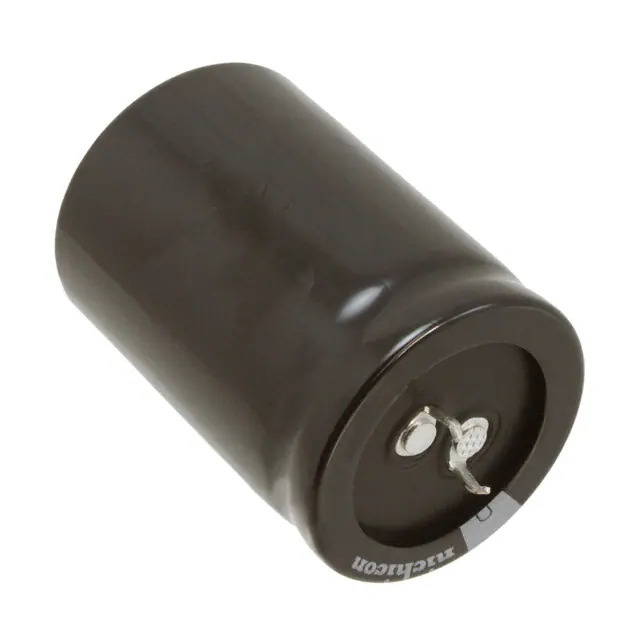

Same model may have multiple batches, images only for reference.
LGG2W681MELC50 Nichicon
Same model may have multiple batches, images only for reference.

LGG2W681MELC50

Part No LGG2W681MELC50
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 680UF 20% 450V SNAP / 680 µF 450 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C
Datasheet
LGG2W681MELC50 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series LGG
Package Bulk
Product Status Active
Capacitance 680 µF
Tolerance ±20%
Voltage - Rated 450 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -25°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 1.91 A @ 120 Hz
Ripple Current @ High Frequency 2.7313 A @ 50 kHz
Lead Spacing 0.394" (10.00mm)
Size / Dimension 1.378" Dia (35.00mm)
Height - Seated (Max) 2.047" (52.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0040
Win Source Part Number 1360735-LGG2W681MELC50
Ultra Librarian 3D Model Ultra Librarian LGG2W681MELC50 CAD Model

Description

The 1360735-LGG2W681MELC50 is a high-quality aluminum electrolytic capacitor manufactured by Nichicon.

  • Series: LGG
  • Application: General-Purpose
  • Capacitance: 680 µF
  • Voltage Rating: 450 V
  • Tolerance: ±20%
  • Operating Temperature: -25°C to 105°C
  • Package: Radial, Can - Snap-In
  • Mounting Type: Through Hole
  • Lead Spacing: 0.394" (10.00mm)
  • Size/Dimension: 1.378" Dia (35.00mm)
  • Height Seated (Max): 2.047" (52.00mm)
  • Ripple Current (Low Frequency): 1.91 A @ 120 Hz
  • Ripple Current (High Frequency): 2.7313 A @ 50 kHz
  • Lifetime: 2000 hours @ 105°C
  • REACH Status: Unaffected
  • ECCN: EAR99
  • Polarization: Polar
