Same model may have multiple batches, images only for reference.

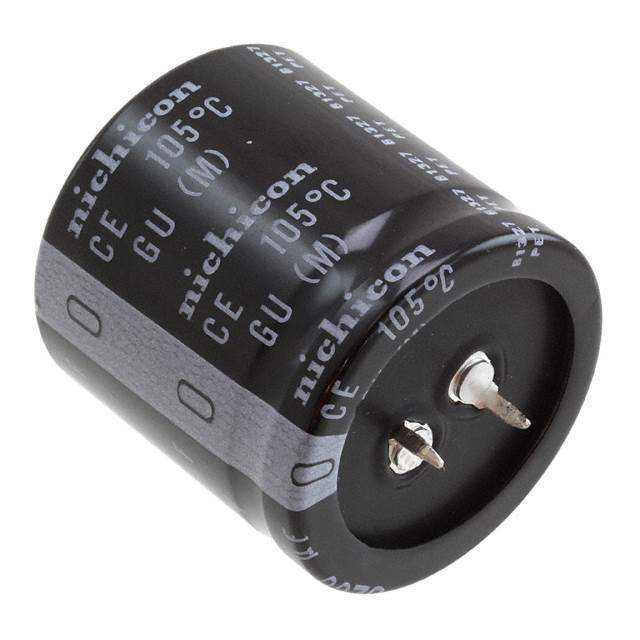

LGU1E223MELC Real Image
Same model may have multiple batches, images only for reference.

LGU1E223MELC

Part No LGU1E223MELC
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 22000UF 20% 25V SNAP / 22000 µF 25 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C
Datasheet
LGU1E223MELC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series LGU
Package Bulk
Capacitance 22000 µF
Tolerance ±20%
Voltage - Rated 25 V
Lifetime @ Temp. 3000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 3.96 A @ 120 Hz
Ripple Current @ High Frequency 4.554 A @ 50 kHz
Lead Spacing 0.394" (10.00mm)
Size / Dimension 1.378" Dia (35.00mm)
Height - Seated (Max) 1.457" (37.00mm)
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
Standard Package 200
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0040
Win Source Part Number 1340666-LGU1E223MELC
Ultra Librarian 3D Model Ultra Librarian LGU1E223MELC CAD Model

Description

This LGU series aluminum electrolytic capacitor is designed for general-purpose applications. With a capacitance of 22000 µF and a voltage rating of 25 V, it can deliver reliable performance in a range of electronic devices.

  • Series: LGU
  • Capacitance: 22000 µF
  • Voltage Rating: 25 V
  • Package/Case: Radial, Can
  • Mounting Type: Through Hole
  • Size / Dimension: 1.378" Dia (35.00mm)
  • Height - Seating (Max): 1.457" (37.00mm)
  • ESR (Equivalent Series Resistance): Not Specified
  • Lifetime @ Temp.: 3000 Hrs @ 105°C
  • Polarization: Polar
  • Tolerance: ±20%
  • Ripple Current @ Low Frequency: 3.96 A @ 120 Hz
  • Ripple Current @ High Frequency: 4.554 A @ 50 kHz
  • Manufacturer: Nichicon
