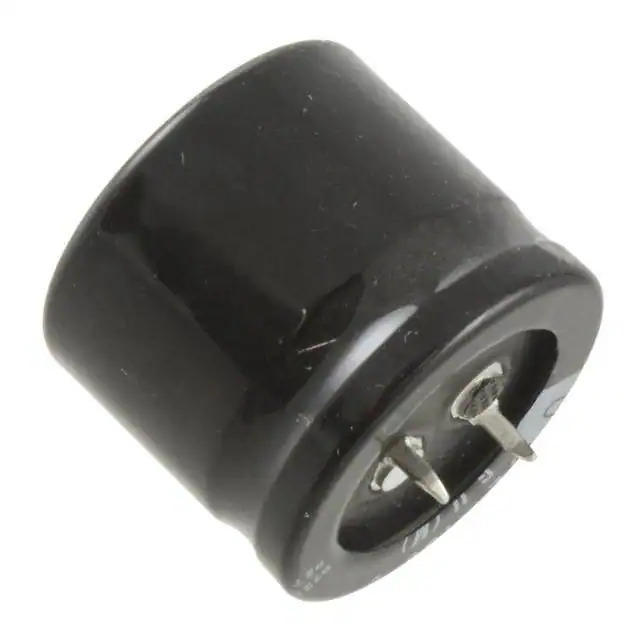

LGU2D561MELB Nichicon
Same model may have multiple batches, images only for reference.

LGU2D561MELB

Part No LGU2D561MELB
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 560UF 20% 200V SNAP / 560 µF 200 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C
Datasheet
LGU2D561MELB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series LGU
Package Bulk
Product Status Active
Capacitance 560 µF
Tolerance ±20%
Voltage - Rated 200 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 3000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 1.67 A @ 120 Hz
Ripple Current @ High Frequency 2.505 A @ 50 kHz
Lead Spacing 0.394" (10.00mm)
Size / Dimension 1.181" Dia (30.00mm)
Height - Seated (Max) 0.984" (25.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0040
Win Source Part Number 1360804-LGU2D561MELB
Ultra Librarian 3D Model Ultra Librarian LGU2D561MELB CAD Model

Description

The LGU2D561MELB is an aluminum electrolytic capacitor from Nichicon's LGU series.

  • Product Status: Active
  • Series: LGU
  • Capacitance: 560 μF
  • Voltage Rating: 200 V
  • Tolerance: ±20%
  • Ripple Current (Low Frequency): 1.67 A @ 120 Hz
  • Ripple Current (High Frequency): 2.505 A @ 50 kHz
  • Size: 1.181" diameter
  • Height: 0.984"
  • Mounting: Snap-in
  • Lifetime: 3000 hours @ 105°C
  • Lead Spacing: 0.394"
  • Packaging: Bulk
  • Application: General-purpose
