Same model may have multiple batches, images only for reference.

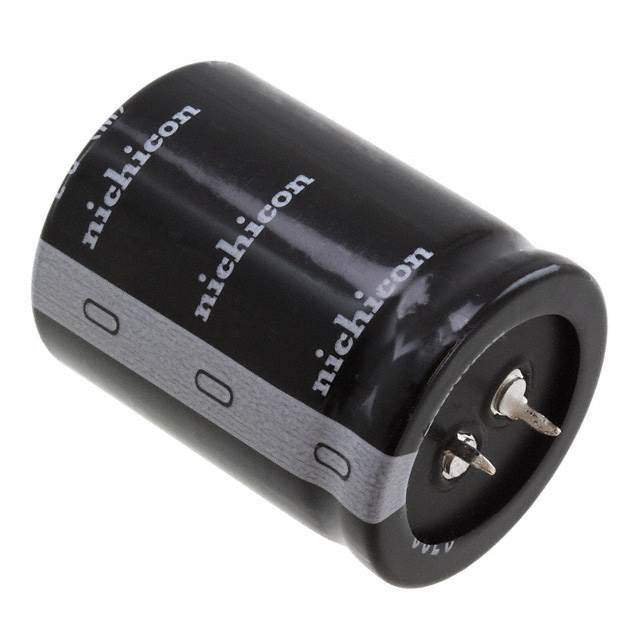

LLG2W681MELC45 Real Image
Same model may have multiple batches, images only for reference.

LLG2W681MELC45

Part No LLG2W681MELC45
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 680UF 20% 450V SNAP / 680 µF 450 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 85°C
Datasheet
LLG2W681MELC45 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series LLG
Package Bulk
Capacitance 680 µF
Tolerance ±20%
Voltage - Rated 450 V
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -25°C ~ 85°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 2.82 A @ 120 Hz
Ripple Current @ High Frequency 4.0326 A @ 50 kHz
Lead Spacing 0.394" (10.00mm)
Size / Dimension 1.378" Dia (35.00mm)
Height - Seated (Max) 1.850" (47.00mm)
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
Standard Package 200
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0040
Win Source Part Number 1340819-LLG2W681MELC45
Ultra Librarian 3D Model Ultra Librarian LLG2W681MELC45 CAD Model

Description

The 1340819-LLG2W681MELC45 is an aluminum electrolytic capacitor from Nichicon.

  • Capacitance: 680 µF
  • Voltage Rating: 450 V
  • Series: LLG
  • Applications: General-Purpose
  • Package: Bulk
  • Standard Package: 200
  • Polarity: Polarized
  • Package/Case: Radial, Can - Snap-In
  • Size: 1.378 inches (Diameter)
  • Height: 1.850 inches (Seated Height)
  • Tolerance: ±20%
  • Lifetime: 2000 hours @ 85°C
  • Lead Spacing: 0.394 inches
  • Mounting: Through Hole
  • Ripple Current: 2.82 A (Low Frequency), 4.0326 A (High Frequency)
  • REACH: Unaffected
