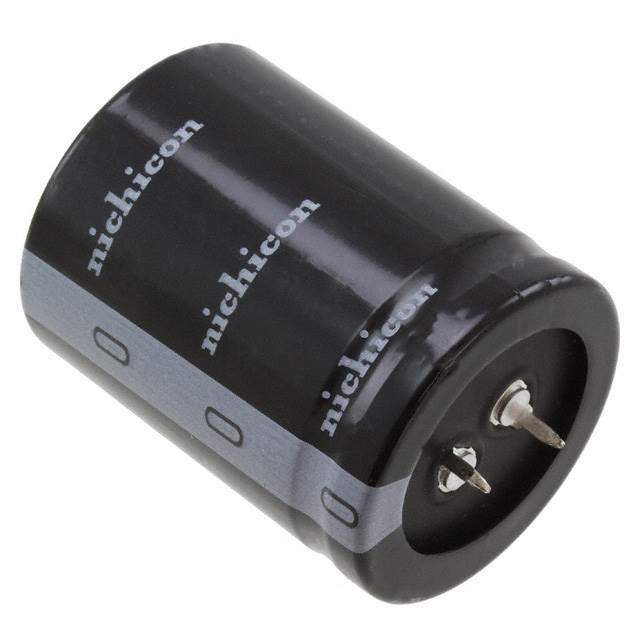

Same model may have multiple batches, images only for reference.

LLS1J123MELC

Name: LLS1J123MELC
Brand: Nichicon
SKU: 1351156
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	LLS1J123MELC
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 12000UF 20% 63V SNAP / 12000 µF 63 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 85°C
Datasheet	LLS1J123MELC Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	LLS
Package	Bulk
Capacitance	12000 µF
Tolerance	±20%
Voltage - Rated	63 V
Lifetime @ Temp.	3000 Hrs @ 85°C
Temperature Range - Operating	-40°C ~ 85°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	6.47 A @ 120 Hz
Ripple Current @ High Frequency	7.4405 A @ 50 kHz
Lead Spacing	0.394" (10.00mm)
Size / Dimension	1.378" Dia (35.00mm)
Height - Seated (Max)	1.850" (47.00mm)
Mounting Type	Through Hole
Package / Case	Radial, Can - Snap-In
Standard Package	200
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0040
Win Source Part Number	1351156-LLS1J123MELC
Ultra Librarian 3D Model	Ultra Librarian LLS1J123MELC CAD Model

Alternative Products

Description

The Nichicon LLS1J123MELC is an aluminum electrolytic capacitor with a capacitance of 12000 µF and a voltage rating of 63 V. It is a part of the LLS series and is categorized under Capacitors - Aluminum Electrolytic Capacitors.

Applications: General Purpose
Height (Seated): 1.850" (47.00mm)
Tolerance: ±20%
Lead Spacing: 0.394" (10.00mm)
Ripple Current (Low Frequency): 6.47 A @ 120 Hz
Ripple Current (High Frequency): 7.4405 A @ 50 kHz
