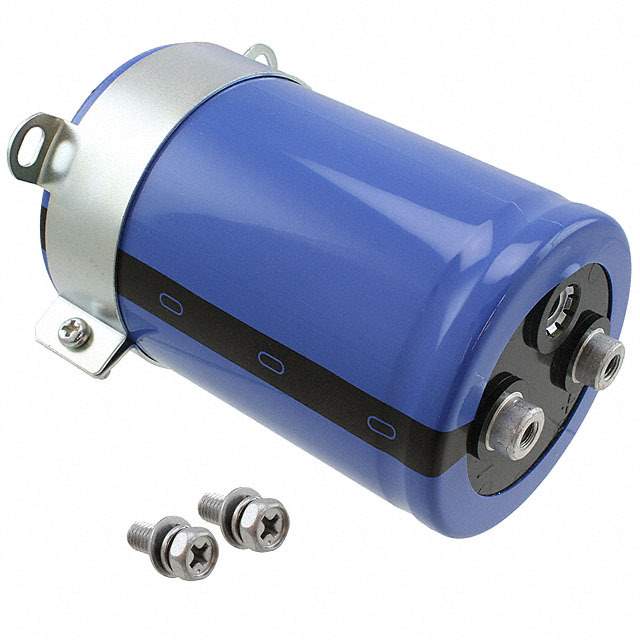

Same model may have multiple batches, images only for reference.

LNR2C103MSE

Name: LNR2C103MSE
Brand: Nichicon
SKU: 1340916
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	LNR2C103MSE
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 10000UF 20% 160V SCREW / 10000 µF 160 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 5000 Hrs @ 85°C
Datasheet	LNR2C103MSE Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	LNR
Package	Bulk
Capacitance	10000 µF
Tolerance	±20%
Voltage - Rated	160 V
Lifetime @ Temp.	5000 Hrs @ 85°C
Temperature Range - Operating	-25°C ~ 85°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	9.1 A @ 120 Hz
Ripple Current @ High Frequency	10.92 A @ 10 kHz
Lead Spacing	1.126" (28.60mm)
Size / Dimension	2.500" Dia (63.50mm)
Height - Seated (Max)	4.055" (103.00mm)
Mounting Type	Chassis Mount
Package / Case	Radial, Can - Screw Terminals
Standard Package	5
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0085
Win Source Part Number	1340916-LNR2C103MSE
Ultra Librarian 3D Model	Ultra Librarian LNR2C103MSE CAD Model

Alternative Products

Description

Nichicon's LNR series of aluminum electrolytic capacitors are designed for general-purpose applications. Nichicon delivers these capacitors.

Capacitance: 10000µF
Tolerance: ±20%
Voltage Rating: 160V
Lead Spacing: 1.126 inches (28.60mm)
Ripple Current: 9.1A @ 120 Hz
Ripple Current: 10.92A @ 10 kHz
Lifetime: 5000 hours @ 85°C
Operating Temperature: -25°C to 85°C
Package: Radial, Can
Termination Style: Screw Terminals
Packaging: Bulk
