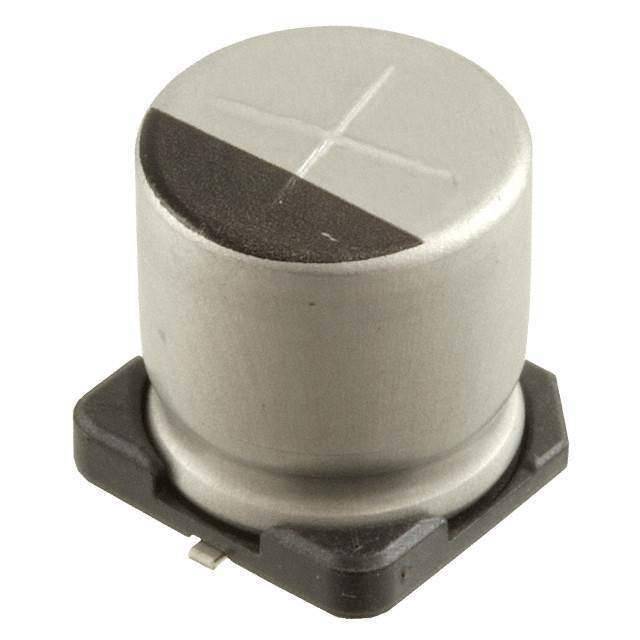

UCD1C681MNL1GS Real Image
Same model may have multiple batches, images only for reference.

UCD1C681MNL1GS

Part No UCD1C681MNL1GS
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 680UF 20% 16V SMD / 680 µF 16 V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C
Datasheet
UCD1C681MNL1GS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UCD
Package Tape & Reel
Capacitance 680 µF
Tolerance ±20%
Voltage - Rated 16 V
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 425 mA @ 120 Hz
Ripple Current @ High Frequency 850 mA @ 100 kHz
Impedance 80 mOhms
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.413" (10.50mm)
Surface Mount Land Size 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1339075-UCD1C681MNL1GS
Ultra Librarian 3D Model Ultra Librarian UCD1C681MNL1GS CAD Model

Description

The UCD series aluminum electrolytic capacitor is a high-performance capacitor designed for automotive applications from Nichicon.

  • Series: UCD
  • Application: Automotive
  • Capacitance: 680 microfarads
  • Voltage Rating: 16 V
  • Applications: DC filtering and DC link
  • ESR: 80 milliohms
  • Lifetime: 5000 hours @ 105 degrees Celsius
  • Polarization: Polarized
  • Package: Radial, Can - SMD
  • Surface Mount Land Size: 0.406 inches L x 0.406 inches W (10.30mm x 10.30mm)
  • Mounting Technology: Surface Mount
  • AEC-Q200: Rated AEC-Q200
