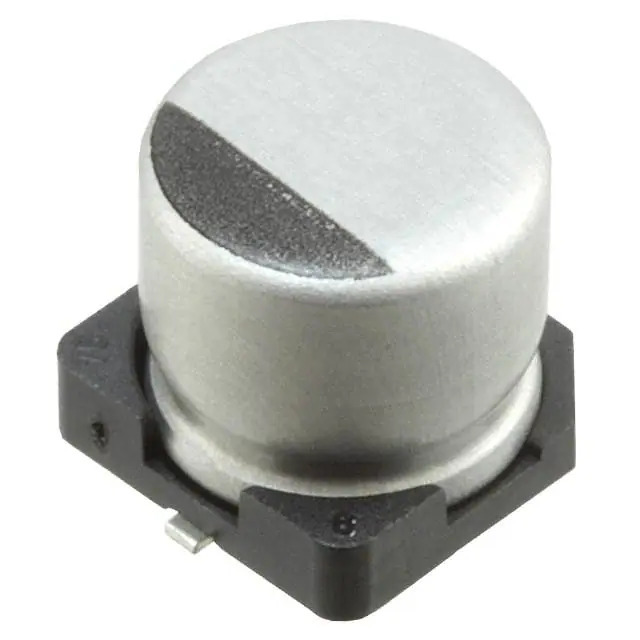

Same model may have multiple batches, images only for reference.
UCD1E470MCL1GS Nichicon
Same model may have multiple batches, images only for reference.

UCD1E470MCL1GS

Part No UCD1E470MCL1GS
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 47UF 20% 25V SMD / 47 µF 25 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C
Datasheet
UCD1E470MCL1GS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UCD
Package Tape & Reel
Product Status Active
Capacitance 47 µF
Tolerance ±20%
Voltage - Rated 25 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 120 mA @ 120 Hz
Ripple Current @ High Frequency 240 mA @ 100 kHz
Impedance 360 mOhms
Lead Spacing -
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.240" (6.10mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1360141-UCD1E470MCL1GS
Ultra Librarian 3D Model Ultra Librarian UCD1E470MCL1GS CAD Model

Description

The UCD1E470MCL1GS is an aluminum electrolytic capacitor designed for automotive applications.

  • Manufacturer:
  • Application: Automotive
  • Temperature Range: -55°C to 105°C
  • Capacitance: 47µF
  • Voltage Rating: 25V
  • Tolerance: ±20%
  • Package Type: Radial, can - SMD
  • Size: 0.248" Dia (6.30mm)
  • Height: 0.240" (6.10mm)
  • Polarity: Polarized
  • Ripple Current: 120mA @ low frequency (120Hz), 240mA @ high frequency (100kHz)
