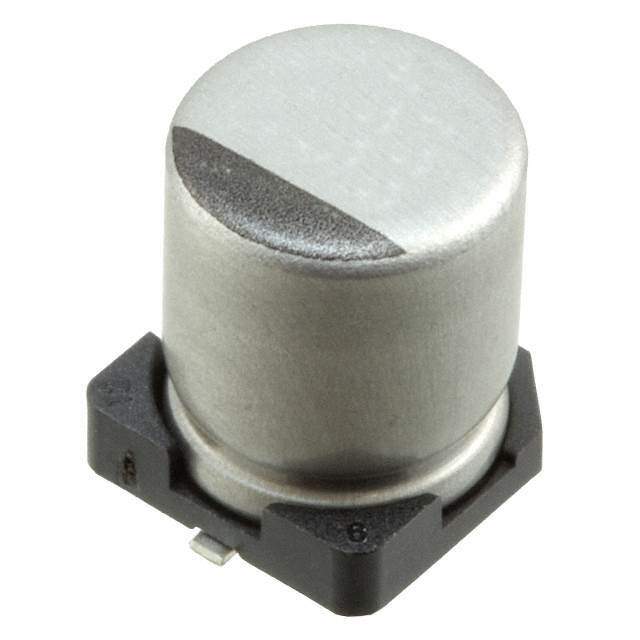

Same model may have multiple batches, images only for reference.

UCM1H101MCL1GS

Name: UCM1H101MCL1GS
Brand: Nichicon
SKU: 1328679
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	UCM1H101MCL1GS
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 100UF 20% 50V SMD / 100 µF 50 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Manufacturer	Nichicon
Packaging	Reel - TR
Capacitance	100 µF
Tolerance	±20%
Voltage - Rated	50 V
Lifetime @ Temp.	2000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	175 mA @ 120 Hz
Ripple Current @ High Frequency	350 mA @ 100 kHz
Impedance	340 mOhms
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.315" (8.00mm)
Surface Mount Land Size	0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting	Surface Mount
Case / Package	Radial, Can - SMD
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Other Part Number	493-14533-1,493-14533-6,UCM1H101MCL1GS-ND,493-14533-2
Standard Package	900
Win Source Part Number	1328679-UCM1H101MCL1GS
Ultra Librarian 3D Model	Ultra Librarian UCM1H101MCL1GS CAD Model

Alternative Products

Description

The UCM1H101MCL1GS aluminum electrolytic capacitor from Nichicon is designed for use in automotive applications.

Application: Automotive
Capacitance: 100 µF
Voltage Rating: 50V
Tolerance: ±20%
Lifetime: 2000 hours @ 105°C
Mounting Type: Surface Mount
Package: Radial, Can - SMD
Ripple Current: 175 mA @ 120 Hz and 350 mA @ 100 kHz
ROHS3 Compliant: Yes
REACH Regulations: Unaffected
