Same model may have multiple batches, images only for reference.

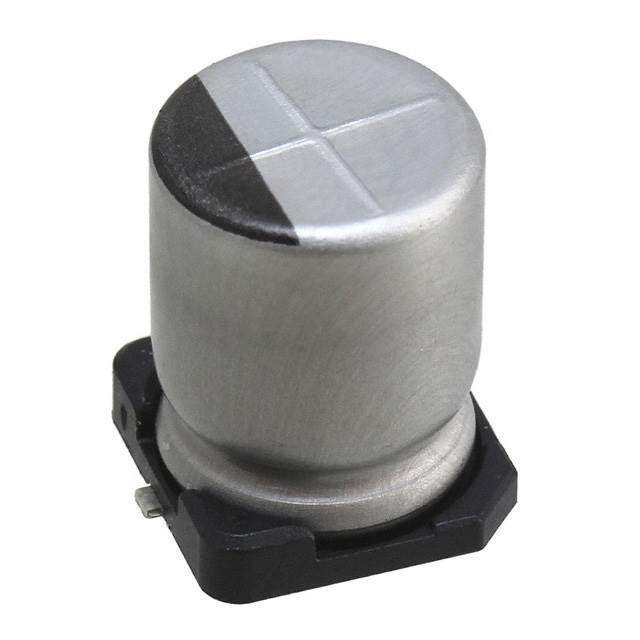

UCW1E331MNL1GS Real Image
Same model may have multiple batches, images only for reference.

UCW1E331MNL1GS

Part No UCW1E331MNL1GS
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 330UF 20% 25V SMD / 330 µF 25 V Aluminum Electrolytic Capacitors Radial, Can - SMD 7000 Hrs @ 105°C
Datasheet
UCW1E331MNL1GS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UCW
Package Tape & Reel
Capacitance 330 µF
Tolerance ±20%
Voltage - Rated 25 V
Lifetime @ Temp. 7000 Hrs @ 105°C
Temperature Range - Operating -25°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 300 mA @ 120 Hz
Ripple Current @ High Frequency 600 mA @ 100 kHz
Impedance 220 mOhms
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.394" (10.00mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1350029-UCW1E331MNL1GS
Ultra Librarian 3D Model Ultra Librarian UCW1E331MNL1GS CAD Model

Description

The Nichicon UCW series is an aluminum electrolytic capacitor with a capacitance of 330µF and a voltage rating of 25V.

  • Capacitance: 330µF
  • Voltage Rating: 25V
  • Tolerance: ±20%
  • Impedance: 220mOhms
  • Polarization: Polarized
  • Ripple Current: 300mA @ 120 Hz, 600mA @ 100kHz
  • Lifetime: 7000 Hrs @ 105°C
  • Temperature Range: -25°C to 105°C
