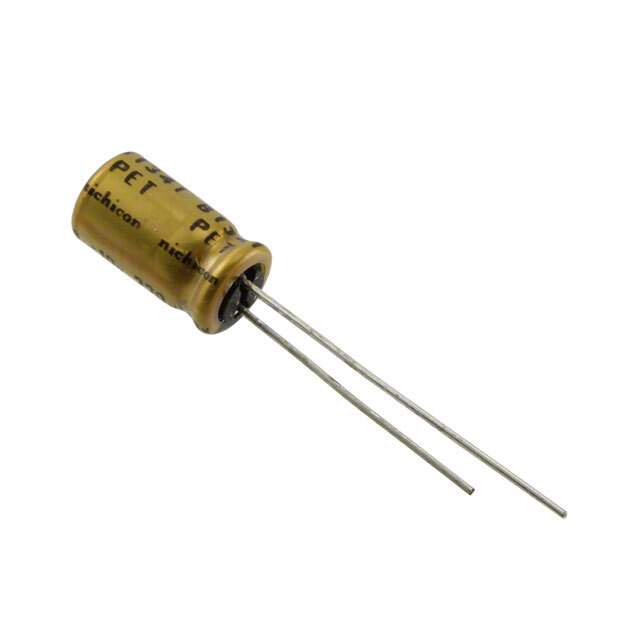

Same model may have multiple batches, images only for reference.

UFW2A220MED

Get a Quote

Part No	UFW2A220MED
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 22UF 20% 100V RADIAL / 22 µF 100 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C
Datasheet	UFW2A220MED Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UFW
Package	Bulk
Product Status	Obsolete
Capacitance	22 µF
Tolerance	±20%
Voltage - Rated	100 V
Lifetime @ Temp.	2000 Hrs @ 85°C
Temperature Range - Operating	-40°C ~ 85°C
Polarization	Polar
Applications	Audio
Ripple Current @ Low Frequency	120 mA @ 120 Hz
Ripple Current @ High Frequency	240 mA @ 10 kHz
Lead Spacing	0.098" (2.50mm)
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.433" (11.00mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
Standard Package	200
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1351767-UFW2A220MED
Ultra Librarian 3D Model	Ultra Librarian UFW2A220MED CAD Model

Alternative Products

Description

The UFW2A220MED capacitor is a part of the UFW series of aluminum electrolytic capacitors.

Series: UFW
Capacitance: 22 µF
Voltage - Rated: 100 V
Tolerance: ±20%
ESR (Equivalent Series Resistance): -
Height: 11.00mm
Diameter: 6.30mm
Polarization: Polar
Package / Case: Radial, Can
Application: Audio
Lifetime @ Temp.: 2000 Hrs @ 85°C
