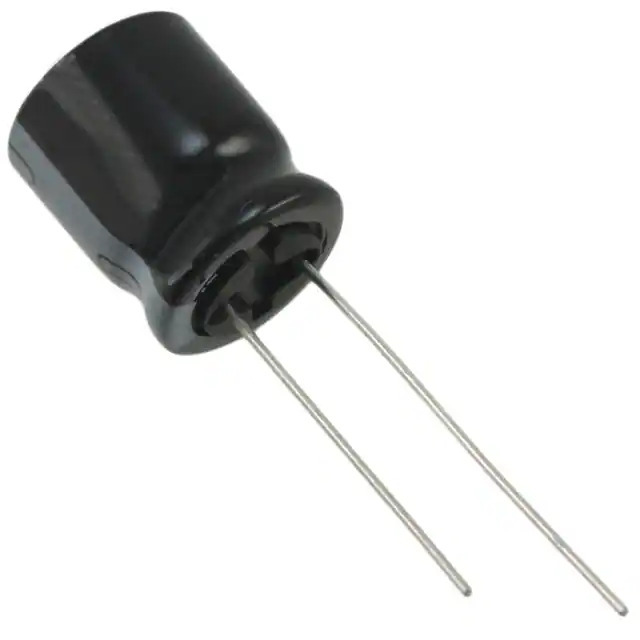

Same model may have multiple batches, images only for reference.
UHE1H561MHD Nichicon
Same model may have multiple batches, images only for reference.

UHE1H561MHD

Part No UHE1H561MHD
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 560UF 20% 50V RADIAL / 560 µF 50 V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C
Datasheet
UHE1H561MHD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UHE
Package Bulk
Product Status Not For New Designs
Capacitance 560 µF
Tolerance ±20%
Voltage - Rated 50 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 1.463 A @ 120 Hz
Ripple Current @ High Frequency 1.95 A @ 100 kHz
Impedance 34 mOhms
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.492" Dia (12.50mm)
Height - Seated (Max) 0.984" (25.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357920-UHE1H561MHD
Ultra Librarian 3D Model Ultra Librarian UHE1H561MHD CAD Model

Description

The UHE1H561MHD is an aluminum electrolytic capacitor from Nichicon's UHE series.

  • Capacitance: 560 μF
  • Tolerance: ±20%
  • Voltage: 50 V
  • Ripple Current (Low Frequency): 1.463 A @ 120 Hz
  • Ripple Current (High Frequency): 1.95 A @ 100 kHz
  • Application: General Purpose
  • Package: Radial, Can
  • Mounting: Through-Hole
  • Size: 0.492" diameter
  • Height: 0.984"
  • Lifetime: 10,000 hours @ 105°C
  • REACH: Unaffected
  • ECCN: EAR99
  • Polarization: Polar
  • Lead Spacing: 0.197" (5.00mm)
