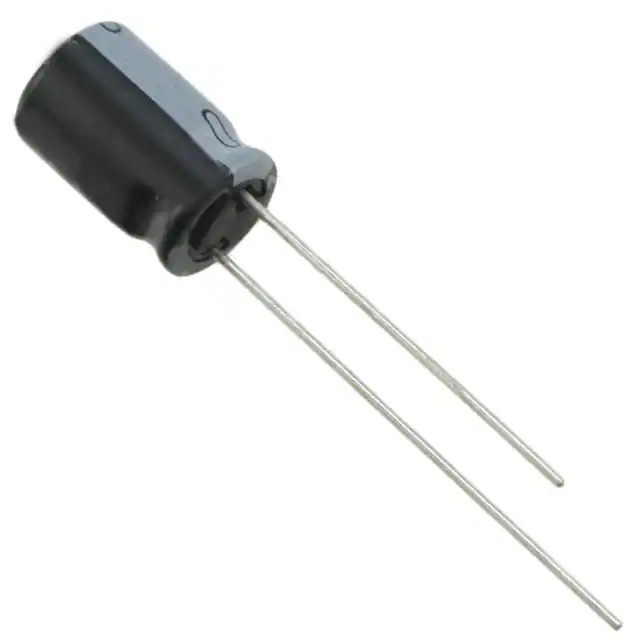

Same model may have multiple batches, images only for reference.
UHE1V221MPD Nichicon
Same model may have multiple batches, images only for reference.

UHE1V221MPD

Part No UHE1V221MPD
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 220UF 20% 35V RADIAL / 220 µF 35 V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C
Datasheet
UHE1V221MPD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UHE
Package Bulk
Product Status Not For New Designs
Capacitance 220 µF
Tolerance ±20%
Voltage - Rated 35 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 7000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 588 mA @ 120 Hz
Ripple Current @ High Frequency 840 mA @ 100 kHz
Impedance 87 mOhms
Lead Spacing 0.138" (3.50mm)
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.591" (15.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357612-UHE1V221MPD
Ultra Librarian 3D Model Ultra Librarian UHE1V221MPD CAD Model

Description

The UHE1V221MPD is an aluminum electrolytic capacitor designed for general-purpose applications.

  • Application: General Purpose
  • Temperature Range: -40°C to 105°C
  • Capacitance: 220µF
  • Voltage Rating: 35V
  • Tolerance: ±20%
  • Package Type: Radial, Can
  • Size (Diameter): 0.315" Dia (8.00mm)
  • Height: 0.591" (15.00mm)
  • Polarization: Polarized
  • Ripple Current (Low Frequency): 588mA @ 120Hz
  • Ripple Current (High Frequency): 840mA @ 100kHz
  • Manufacturer: Unknown
