Same model may have multiple batches, images only for reference.

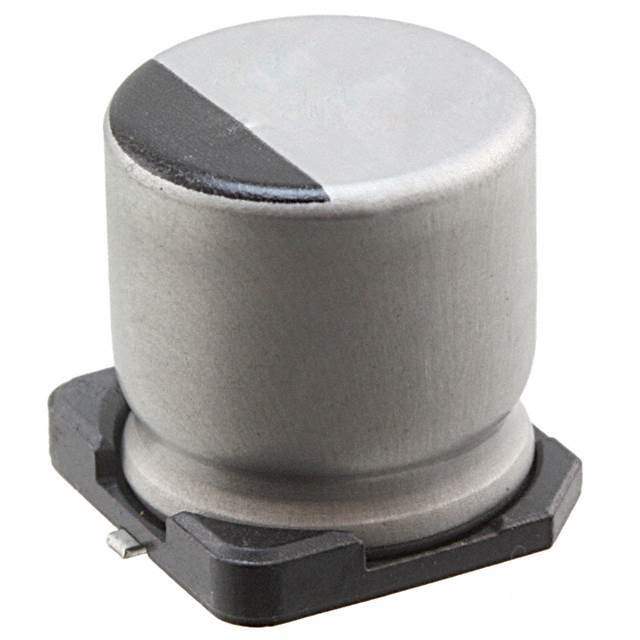

ULH2C180MNL1GS Real Image
Same model may have multiple batches, images only for reference.

ULH2C180MNL1GS

Part No ULH2C180MNL1GS
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 18UF 20% 160V SMD / 18 µF 160 V Aluminum Electrolytic Capacitors Radial, Can - SMD 4000 Hrs @ 125°C
Datasheet
ULH2C180MNL1GS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series ULH
Package Tape & Reel
Capacitance 18 µF
Tolerance ±20%
Voltage - Rated 160 V
Lifetime @ Temp. 4000 Hrs @ 125°C
Temperature Range - Operating -40°C ~ 125°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 60 mA @ 120 Hz
Ripple Current @ High Frequency 90 mA @ 10 kHz
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.406" (10.30mm)
Surface Mount Land Size 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1338868-ULH2C180MNL1GS
Ultra Librarian 3D Model Ultra Librarian ULH2C180MNL1GS CAD Model

Description

This is an aluminum electrolytic capacitor that belongs to the category of capacitors. The part number of this product is 1338868-ULH2C180MNL1GS and it is part of the ULH series.

  • Capacitance: 18 microfarads
  • Capacitance Tolerance: ±20%
  • Rated Voltage: 160V
  • Size/Dimension: 0.394 inches in diameter
  • Mounting Type: Surface Mount
  • Package/Case: Radial, Can-SMD
  • Height - Seated (Max): 0.406 inches (10.30mm)
  • Application: General Purpose
  • Ripple Current @ Low Frequency: 60 mA @ 120 Hz
  • Ripple Current @ High Frequency: 90 mA @ 10 kHz
  • Lifetime: 4000 hours @ 125°C
  • Polarization: Polarized
  • Surface Mount Land Size: 0.406 inches Length x 0.406 inches Width
  • Operating Temperature: -40°C to 125°C
  • Manufacturer: Nichicon
  • ECCN: EAR99
  • Standard Package: 500
