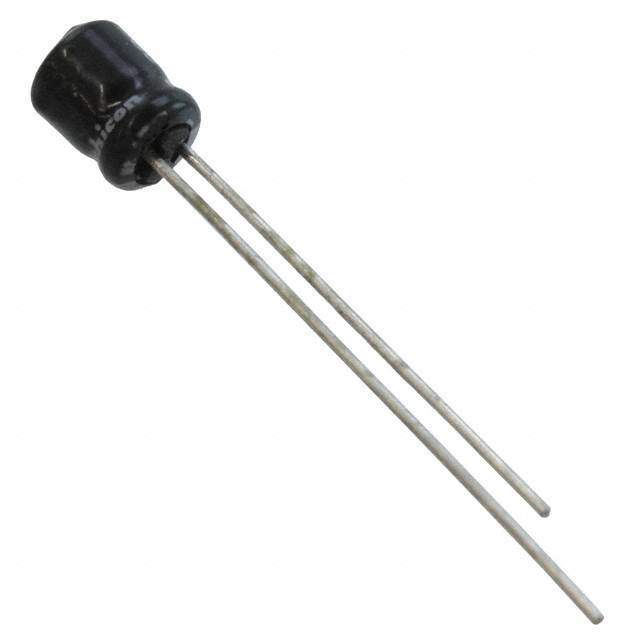

UMA1C100MDD1TE Real Image
Same model may have multiple batches, images only for reference.

UMA1C100MDD1TE

Part No UMA1C100MDD1TE
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 10UF 20% 16V RADIAL / 10 µF 16 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UMA
Package Tape & Box (TB)
Product Status Obsolete
Capacitance 10 µF
Tolerance ±20%
Voltage - Rated 16 V
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 23 mA @ 120 Hz
Ripple Current @ High Frequency 34.5 mA @ 10 kHz
Lead Spacing 0.059" (1.50mm)
Size / Dimension 0.157" Dia (4.00mm)
Height - Seated (Max) 0.236" (6.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
Standard Package 2,000
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1351005-UMA1C100MDD1TE
Ultra Librarian 3D Model Ultra Librarian UMA1C100MDD1TE CAD Model

Description

The UMA aluminum electrolytic capacitor from Nichicon is a general-purpose capacitor that is perfect for a wide range of applications.

  • Capacitance: 10μF
  • Voltage Rating: 16V
  • Mounting: Through-Hole
  • Package: Radial, Can
  • Height (Max): 0.236” (6.00mm)
  • Lead Spacing: 0.059” (1.50mm)
  • Ripple Current @ Low Frequency: 23mA @ 120Hz
  • Ripple Current @ High Frequency: 34.5mA @ 10kHz
