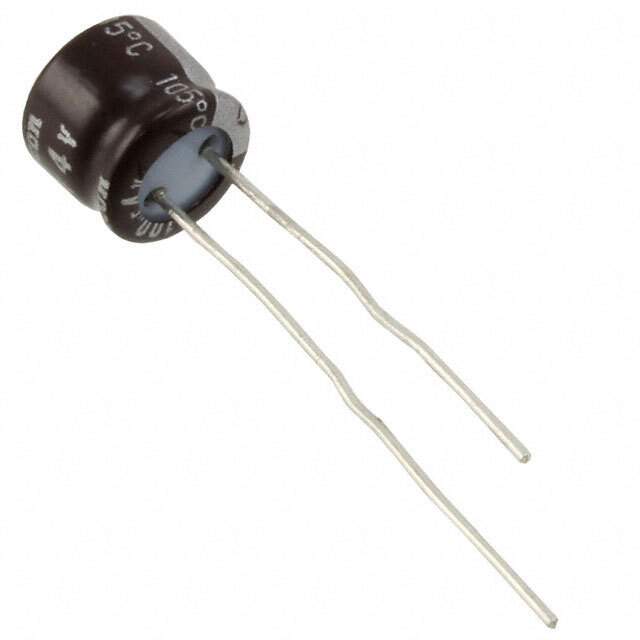

Same model may have multiple batches, images only for reference.

UMV1C100MFD1TE

Get a Quote

Part No	UMV1C100MFD1TE
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 10UF 20% 16V RADIAL / 10 µF 16 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UMV
Package	Tape & Box (TB)
Product Status	Obsolete
Capacitance	10 µF
Tolerance	±20%
Voltage - Rated	16 V
Lifetime @ Temp.	5000 Hrs @ 105°C
Temperature Range - Operating	-40°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	18 mA @ 120 Hz
Ripple Current @ High Frequency	27 mA @ 10 kHz
Lead Spacing	0.059" (1.50mm)
Size / Dimension	0.157" Dia (4.00mm)
Height - Seated (Max)	0.236" (6.00mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
Standard Package	2,000
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1336787-UMV1C100MFD1TE
Ultra Librarian 3D Model	Ultra Librarian UMV1C100MFD1TE CAD Model

Alternative Products

Description

The Nichicon UMV Aluminum Electrolytic Capacitor is a general-purpose capacitor with a capacitance of 10 µF and a voltage rating of 16 V. Nichicon

Capacitance: 10 µF
Voltage Rating: 16 V
Tolerance: ±20%
Lead Spacing: 0.059" (1.50mm)
Mounting Type: Through-Hole
Package: Radial, Can
Temperature Range: -40°C ~ 105°C
Lifetime: 5000 Hrs @ 105°C
Ripple Current (Low Frequency): 18 mA @ 120 Hz
Ripple Current (High Frequency): 27 mA @ 10 kHz
Polarized: Yes
ESR (Equivalent Series Resistance): -
